Front Left CV Axle for 1986-1990 Ford Escort & More - CARDONE New 66-2004

$114.99

Vehicles this part fits

    Part number: 66-2004
    UPC: 884548208612
    Condition: New
    Weight: 12.40 LBS
    Item Package Quantity: 1
    $114.99
    Adding to cart… The item has been added

    Have questions?

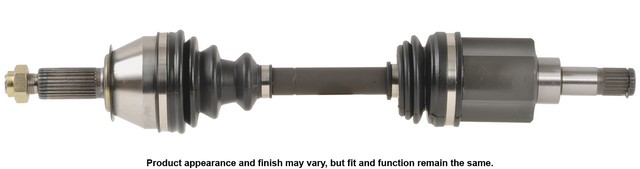

    CARDONE New CV Axle Assembly P/N:66-2004
    CARDONE New CV Axle Assembly P/N:66-2004
    $114.99
    $114.99

    CARDONE New 66-2004 front left CV axle for the 1986-1990 Ford Escort and other vehicles carries drive torque from the transaxle to the wheel. This CV axle assembly has CV joints at both ends, so the wheel can steer and follow the suspension while it keeps turning.

    • Neoprene boots with additional bellows, when needed, to resist bellow stress and ozone cracking
    • Each shaft is individually verified for straightness for vibration-free running at all speeds
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for a proper fit in the hub, transmission and axle nut
    • Transmission seal diameter is precision-machined after heat treatment for a good surface finish and long seal life

    Quick facts

    • Part: CARDONE New 66-2004 CV axle
    • Also called: CV axle assembly
    • Fits: 1986-1990 Ford Escort and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boot
    • Condition: New

    A clicking or snapping noise when you turn hard under power, a vibration when you accelerate, or grease on the chassis and suspension from a split boot can mean the axle is worn. Before you replace this axle, rule out a broken engine mount or its hardware, which can let the drivetrain shift and bind the inner joint.

    Fits

    This axle is listed for a wide range of Ford and Mercury models, including the 1984-1990 Ford Tempo and the 1984-1990 Mercury Topaz. If your car is not named here, look up its year and model in the "Vehicles it fits" section on this page. The 1986-1990 Ford Escort takes one on this side; the front right is its own part, ordered separately.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1
    • Shaft diameter: 25.96 mm (1.022 in)
    • Compressed length: 565 mm (22.244 in)
    • Splines: 23 inboard, 26 outboard
    • Axle nut: M20x1.5 thread, 29 mm (1.142 in) socket

    Build and materials

    • Condition: New
    • Shaft material: Steel
    • Boot material: Neoprene
    • Joints: splined inboard and outboard
    • ABS tone ring: not included
    • Country of origin: China

    In the box

    One complete CV axle with its CV joints, a new hex axle retaining nut and an instruction sheet. The ABS tone ring is not included.

    Installation notes

    • Remove and install one axle at a time, and do not let the axle hang unsupported.
    • Tighten the axle nut with a torque wrench to the vehicle maker's specification; never use an impact wrench.
    • Install new transaxle seals to avoid leaks.

    Interchange: E3FZ3B436H · E43Z3B436D · E4FZ3B414A · F03Z3V427BARM

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    E3FZ3B436H, E43Z3B436D, E4FZ3B414A, F03Z3V427BARM

    Frequently Asked Questions

    Is this 1986-1990 Ford Escort CV axle the front left one?

    Yes. CARDONE New 66-2004 is the front left CV axle for the 1986-1990 Ford Escort, and it also fits the 1984-1990 Ford Tempo. The front right is a separate part.

    Does the CARDONE 66-2004 come with a new axle nut?

    Yes. CARDONE 66-2004 comes with a new hex axle retaining nut (M20x1.5 thread) and an instruction sheet. The ABS tone ring is not included.

    What socket size does the axle nut on this CV axle take?

    The hex axle nut takes a 29 mm (1.142 in) socket. Tighten it with a torque wrench to the vehicle maker's specification, not an impact wrench.

    What can a clicking noise when turning hard mean on a CV axle?

    Clicking or snapping when you turn hard under power can mean a worn outer joint. Grease on the chassis can mean a split boot. A shop can confirm which.

    Do I need new transaxle seals when installing this CV axle?

    Yes. Install new transaxle seals when replacing a CV axle, to avoid leaks. The old axle nut is discarded too, because a new retaining nut comes with the axle.
