Front Left CV Axle for 2009-2019 Toyota Corolla & More - CARDONE New 66-5228

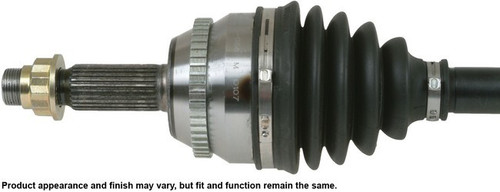

Deliver engine torque to the front left wheel through new CV joints with the CARDONE New 66-5228, a Toyota Corolla cv axle for 2009-2019 models that is also listed for the 2003-2014 Toyota Matrix and 2003-2010 Pontiac Vibe, all engines. CARDONE engineers its CV drive axles to meet O.E. form, fit and function. It studied why original CVs typically fail and designed its axles to address those weak points.

• Neoprene boots: Bellows stress and cracking are the leading cause of boot failure, and CARDONE designs its boots to resist them. This axle uses black, five-rib neoprene boots, held by pneumatically crimped clamps that seal each boot to its housing.
• Verified for fit: Every steel shaft is individually checked for straightness, and axle measurements are validated after assembly.
• Precision-rolled splines and threads: The 20 inboard and 26 outboard splines are rolled for proper fit into the transmission and mating hub. The threads are rolled so the axle nut fits properly. The transmission seal diameter is machined after heat treatment for a correct surface finish that promotes seal life.
• High-quality grease: Formulated for high-temperature and high-torque demands.

Specifications:

• Shaft diameter: 27 mm (1.063 in)
• Compressed length: 647.7 mm (25.5 in)
• ABS tone ring: toothed, 48 teeth, included
• Axle nut: new M22x1.5 hex nut included (30 mm socket, 21.5 mm long), supplied because the original nut is likely worn or stripped

The package contains the complete axle and an instruction sheet. The part is new, and the listed applications use one axle at this position. Country of origin: China.

Interchange: 19204985 · 4342001070 · 4342002390 · 4342002820 · 4342002B10 · 4342002B11 · 4342002B60 · 4342002B61 · 4342002B62
