Front Left CV Axle for 2001-2004 Volvo S40 & More - CARDONE New 66-9229

$133.99

Vehicles this part fits

    Part number: 66-9229
    UPC: 082617776158
    Condition: New
    Weight: 16.10 LBS
    Sold as: 1 axle (this side)
    $133.99
    Adding to cart… The item has been added

    Have questions?

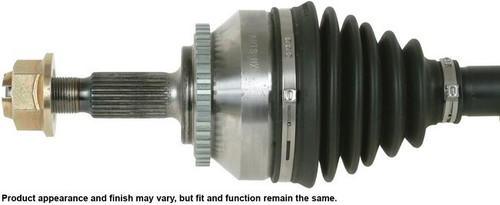

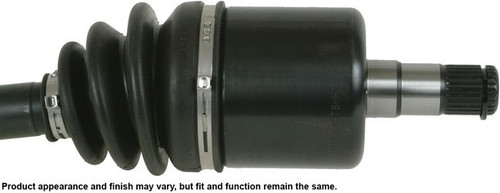

    CARDONE New CV Axle Assembly P/N:66-9229
    CARDONE New CV Axle Assembly P/N:66-9229
    $133.99
    $133.99

    CARDONE New 66-9229 front left CV axle for the 2001-2004 Volvo S40 and other vehicles carries engine torque from the transaxle to the front left wheel. Its design answers the reasons original axles typically fail, to avoid repeat failures.

    • Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking
    • Shaft individually verified for straightness, for vibration-free performance at all speeds
    • Axle measurements validated after assembly to confirm proper fit
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines for the mating hub and transmission, and precision-rolled threads for the axle nut

    Quick facts

    • Part: CARDONE New 66-9229 CV axle
    • Also called: CV axle assembly
    • Fits: 2001-2004 Volvo S40 and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Loud clicking or snapping when you turn hard under power, a thump or vibration on acceleration, or grease on the chassis can mean a worn CV axle assembly. Before replacing it, look over the boots by eye with the engine off for splits and flung grease, so you know the axle is the cause.

    Fits

    It is a front axle replacement for the 2001-2004 Volvo S40 and the 2001-2004 Volvo V40, and this side takes one on each of them. This listing is one axle for the front left; the front right is a separate part, and the two sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front left
    • Quantity: 1 axle (this side)
    • Shaft diameter: 28 mm (1.102 in)
    • Compressed length: 590 mm (23.228 in)
    • Inboard and outboard joints: splined, 26 splines each
    • Axle nut: hex, M22x1.5 thread, 29 mm long, 36 mm socket

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, 5 ribs
    • CV joints: included
    • ABS tone ring: included, toothed, 43 teeth
    • Condition: new
    • Country of origin: China

    In the box

    One complete axle with CV joints and ABS tone ring, an axle retaining nut and an instruction sheet. Universal joints are not included.

    Installation notes

    • Remove and install one CV axle at a time.
    • Tighten the retaining nut with a torque wrench to the manufacturer's specification; never use an impact wrench.
    • Install new transaxle seals to avoid leaking.
    • Never let the axle hang unsupported, which can lead to axle separation and damage to the inner joint.

    Interchange: 8601984 · 86019841 · 8602741 · 86027414

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    8601984, 86019841, 8602741, 86027414

    Frequently Asked Questions

    Is this the front left axle for the 2001-2004 Volvo S40?

    Yes. CARDONE New 66-9229 is a front left CV axle for the 2001-2004 Volvo S40 and the 2001-2004 Volvo V40; the front right is a separate part.

    Does this front left CV axle come with a new axle nut?

    Yes. This front left CV axle comes with an axle retaining nut (hex, M22x1.5 thread), both CV joints and an instruction sheet; the nut is supplied because the original is likely worn or stripped.

    What size is the shaft on CARDONE New 66-9229?

    CARDONE New 66-9229 has a 28 mm (1.102 in) steel shaft and a compressed length of 590 mm (23.228 in).

    What can loud clicking when I turn mean for a CV axle?

    Loud clicking or snapping when you turn hard under power, a thump with vibration on acceleration, or grease flung from a torn boot can mean a worn joint or boot. A shop can confirm it.

    Can I use an impact wrench on the CV axle retaining nut?

    No. Use a torque wrench and tighten the retaining nut to the manufacturer's specification, never an impact wrench.
