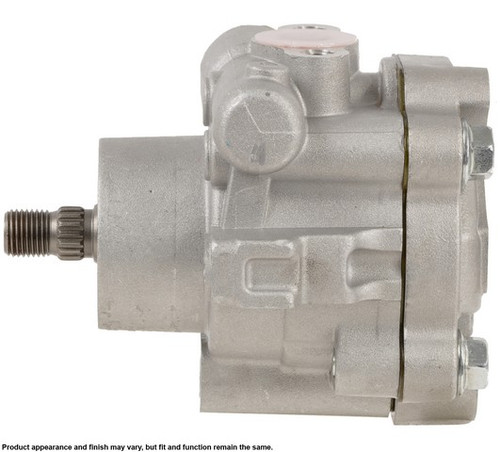

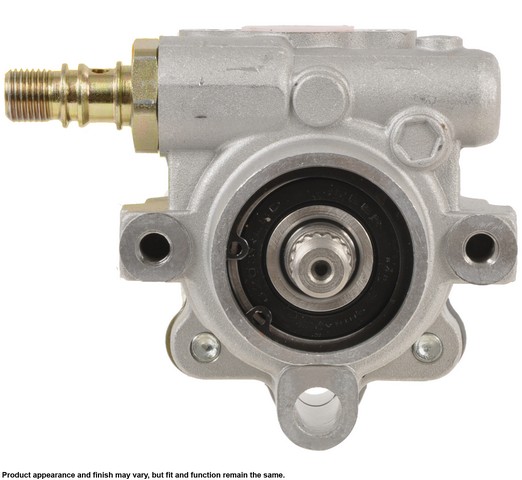

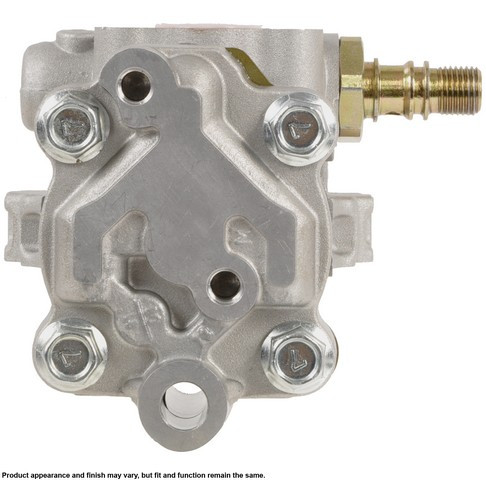

CARDONE New 96-238 power steering pump for the 2006-2010 Infiniti M45 and other vehicles builds the hydraulic pressure that gives the steering its assist. It meets or exceeds O.E. performance and is built for a remote reservoir.
- High-temperature seals supplied with each pump
- Aluminum housing with a splined shaft
- Computer load testing that uses real-world parameters during the test cycle
- Precise bushing alignment to limit shaft and seal wear, reducing noise and vibration
- Barb inlet and threaded 12x1.25 outlet
Quick facts
- Part: CARDONE New 96-238 power steering pump
- Fits: the 2006-2010 Infiniti M45 and other vehicles
- Material: Aluminum housing
- Condition: New
A whining noise or hard steering can mean the pump is worn, though binding steering components, or debris in the pump's flow control valve bore, can be behind them too, so find out which it is before you replace the pump.
Fits
This pump is a direct-fit replacement for the 2006-2010 Infiniti M45 and the 2002-2006 Infiniti Q45. Both take a single pump, and this listing is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet diameter: 0.558 in
- Outlet thread size: 12x1.25
- Inlet attachment: barb
- Outlet attachment: threaded
- Hose port type: washer
- Shaft type: splined
Build and materials
- Housing material: aluminum
- Seals: high-temperature
- Reservoir: remote, not included
- Condition: new
- Country of origin: China
In the box
One power steering pump, one sealing kit and one instruction sheet. The pulley, reservoir, reservoir cap and mounting hardware are not included, so plan on new mounting bolts, as the old ones may not be reusable.
Installation notes
- The instruction sheet in the box covers the installation steps.
- A pulley that fits loosely on the new pump shaft needs to be replaced.
Interchange: 49110AR000 · 49110EH000 · 49110EH00A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
49110AR000, 49110EH000, 49110EH00A
Frequently Asked Questions
Is the CARDONE New 96-238 a power steering pump for the 2002-2006 Infiniti Q45?
Yes. CARDONE New 96-238 is a direct-fit replacement for the 2002-2006 Infiniti Q45 and the 2006-2010 Infiniti M45.
Does this pump come with its pulley and reservoir?
No. The pulley, reservoir, reservoir cap and mounting hardware are not included. The box holds the pump, a sealing kit and an instruction sheet.
What size is the outlet thread on this power steering pump?
The CARDONE New 96-238 has a threaded outlet with a 12x1.25 thread, and a barb inlet with a 0.558 in diameter.
Why is my steering still hard in one direction after a new pump?
Binding steering components can leave the steering hard in one direction, because the pump itself does not know left from right. A shop can check and repair them.
Does the CARDONE New power steering pump use high-temperature seals?
Yes. Each pump is supplied with high-temperature seals, and precise bushing alignment limits shaft and seal wear.
