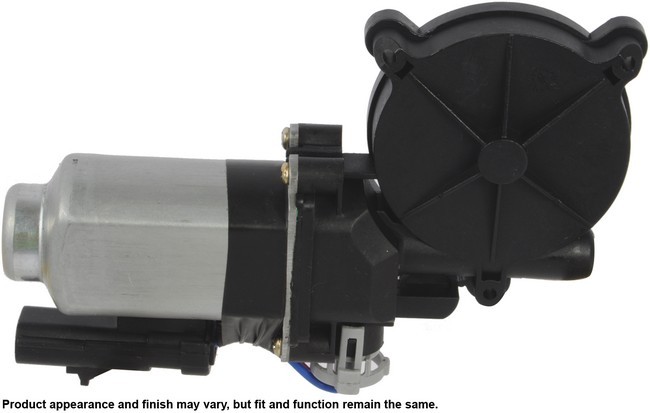

CARDONE New 82-624 front left window motor for the 2002-2007 Jeep Liberty powers the window lift system that raises and lowers the glass. It is a new motor, built as an improvement over the original design.
- Gears made of a less brittle material to resist premature wear, stripping and breakage
- Load tested for consistent performance
- Brushes designed so the armature and contacts are properly matched
- Assembled with a measured amount of lubricant for quiet operation and long life
- Magnets supply the torque needed in extreme weather and to make up for other worn parts in the window lift system
- Extra-torque motor design to prevent failure from an improperly lubricated window lift regulator
Quick facts
- Part: CARDONE New 82-624 window motor
- Fits: 2002-2007 Jeep Liberty
- Position: Front left
- Condition: New
A window that moves slowly, stops partway or does not move at all can mean the window motor is worn. These signs alone do not prove the motor is the problem, since a binding window regulator can also slow the glass.
Fits
This motor is a direct-fit replacement for the 2002-2007 Jeep Liberty. The listing is one motor for the front left side; that side takes one, and the front right motor is ordered separately.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle for this position: 1
- Number of mounting holes: 3
- Mounting type: Self tapping
- Attachment method: Bolt on
- Terminal quantity: 2
Build and materials
- Condition: New
- Connection: Plug-in
- Wiring harness: Included
- Anti-pinch motor: No
- Country of origin: China
In the box
One window motor with its wiring harness and an instruction sheet. The window regulator, bracket and mounting hardware are not included, so plan on new fasteners.
Interchange: 4589265AB · 55360031AG · 55360031AH · 55360031AL · 55360031AM
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4589265AB, 55360031AG, 55360031AH, 55360031AL, 55360031AM
Frequently Asked Questions
Is the CARDONE 82-624 window motor right for the 2002-2007 Jeep Liberty?
Yes. CARDONE 82-624 is a front left window motor for the 2002-2007 Jeep Liberty, so the front right side needs its own motor.
Does the CARDONE 82-624 window motor include a wiring harness?
Yes. This CARDONE 82-624 window motor comes with a wiring harness and an instruction sheet. The window regulator, bracket and mounting hardware are not included.
Is this front left window motor plug-in or hardwired?
This window motor is plug-in, with 2 terminals and 3 mounting holes. It is not an anti-pinch motor.
How can I tell if a front left window motor is going bad?
A window that moves slowly, stops partway or does not move at all can mean the motor is worn. A shop can test the motor and its circuit.
Does the CARDONE 82-624 window motor replace 55360031AG?
Yes. 55360031AG is one of the numbers this CARDONE 82-624 window motor replaces.
