Remanufactured Power Steering Pump for 2001-2006 Hyundai Santa Fe - A1 CARDONE 21-5309

$164.99

Vehicles this part fits

    Part number: 21-5309
    UPC: 082617638043
    Weight: 4.50 LBS
    Item Package Quantity: 1
    $164.99
    Adding to cart… The item has been added

    Have questions?

    CARDONE Reman Power Steering Pump P/N:21-5309
    CARDONE Reman Power Steering Pump P/N:21-5309
    $164.99
    $164.99

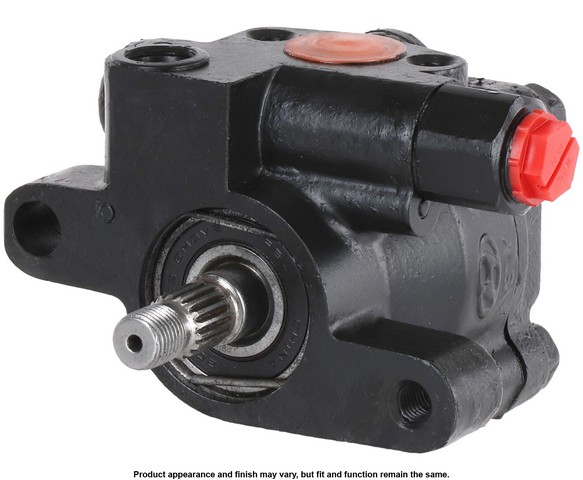

    A1 CARDONE 21-5309 power steering pump for the 2001-2006 Hyundai Santa Fe supplies the hydraulic pressure that helps steer the vehicle. This remanufactured pump is engineered to meet or exceed O.E. performance.

    • Hydraulic efficiency test on every unit
    • Campacs, spool valves and other critical components are triple-tested
    • New O-rings and HNBR seals, which do not break down at high temperatures like conventional seal material
    • Shafts surfaced to precise specifications to limit seal wear
    • Pressure relief valve is tested and calibrated
    • Final assembly is computer-tested for pressure, bypass, fluid flow, valve operation, steering effort and noise

    Quick facts

    • Part: A1 CARDONE 21-5309 power steering pump
    • Fits: 2001-2006 Hyundai Santa Fe
    • Material: Cast iron/aluminum housing
    • Condition: Remanufactured

    A whining noise, hard steering or fluid leaking near the pump can mean it is wearing out. These signs alone do not prove the pump is at fault, since a leaking hose can produce similar trouble.

    Fits

    This pump fits the 2001-2006 Hyundai Santa Fe, which takes one pump.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Outlet thread size: 16x1.5
    • Outlet attachment type: threaded
    • Inlet attachment type: barb
    • Inlet diameter: 14.1732 mm (0.558 in)
    • Hose port type: O-ring

    Build and materials

    • Condition: Remanufactured
    • Housing material: cast iron/aluminum
    • Shaft type: splined
    • Country of origin: Mexico

    In the box

    One power steering pump, one instruction sheet and one sealing kit. The pulley, reservoir, reservoir cap and mounting hardware are not included, so plan on new mounting bolts.

    Interchange: 5710026200

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    5710026200

    Frequently Asked Questions

    Is this A1 CARDONE 21-5309 power steering pump right for the 2001-2006 Hyundai Santa Fe?

    Yes. The A1 CARDONE 21-5309 is listed for the 2001-2006 Hyundai Santa Fe, and that vehicle takes one pump.

    Does this A1 CARDONE power steering pump come with a pulley?

    No. The A1 CARDONE 21-5309 comes with the pump, an instruction sheet and a sealing kit. The pulley, reservoir, reservoir cap and mounting hardware are not included.

    What thread size is the outlet on this power steering pump?

    The outlet is threaded at 16x1.5. The inlet is a barb fitting with a 14.1732 mm (0.558 in) diameter.

    Why might steering stay hard in one direction after a new pump goes in?

    Binding steering components can cause that, and a shop can check them. The pump itself does not know left from right.

    Does 5710026200 cross to the A1 CARDONE 21-5309?

    Yes. 5710026200 is listed as an interchange number for the A1 CARDONE 21-5309, which is a remanufactured pump.
