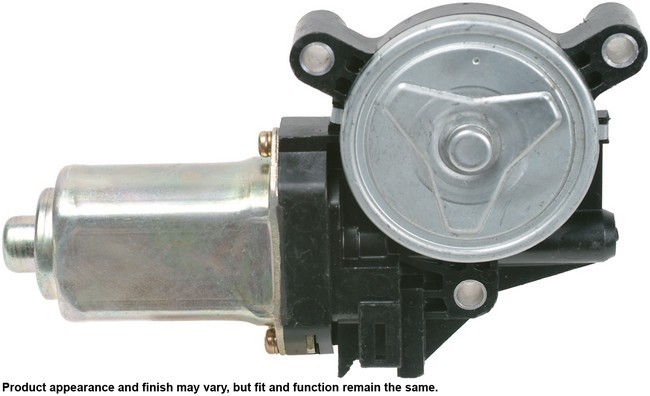

A1 CARDONE 42-1020 left window motor for the 2005-2009 Chevrolet Equinox and other vehicles moves the power window glass up and down. This remanufactured motor began as an Original Equipment core and is tested to match O.E. performance.
- Each motor is tested 100% on a simulated window fixture to verify its speed and strength
- Bushings are gauged and re-impregnated with lubricating oil, ball bearings are replaced with new and armatures are tested for insulation
- Internal gears are gauged, inspected and renewed for reuse, or replaced if out of spec
- Replacement gears use a stronger, less brittle material to prevent premature wear, stripping and breakage
- Motor magnets are 100% recharged for efficiency and reliability
- Each motor is assembled with a precise amount of lubricant for quiet operation and long life
Quick facts
- Part: A1 CARDONE 42-1020 window motor
- Fits: 2005-2009 Chevrolet Equinox and other vehicles
- Position: Front left, rear left
- Condition: Remanufactured
A window that moves slowly, stops partway or does nothing when you press the switch can mean the motor is worn, though the window regulator or the switch can also be behind those signs, so find the cause before replacing the motor.
Fits
It fits the 2005-2009 Chevrolet Equinox, the 2006-2009 Pontiac Torrent and the 2007-2009 Suzuki XL-7, and it is compatible with the O.E. mounting and regulator on each of them.
Specifications
Fit and size
- Position: Front left, rear left
- Quantity per application: 1
- Number of mounting holes: 3
- Terminal quantity: 2
- Voltage: 12 V
Build and materials
- Condition: Remanufactured
- Attachment method: Bolt on
- Mounting type: Through hole
- Connection: Plug-in
- Country of origin: Mexico
In the box
One window motor and one instruction sheet. This listing holds one motor, and each of the front left and rear left positions takes one; the right side is a separate part. The regulator, mounting hardware, wiring harness and bracket are not included, so plan on new bolts.
Installation notes
- The instruction sheet in the box covers the installation steps.
- On motors with an auto up/down feature, output signals and pulse counts are matched to the vehicle application, and the motor ships in the full up position.
Interchange: 88980983 · 8346078J00
Frequently Asked Questions
Is this a Chevy Equinox window motor for 2005-2009 models?
Yes. A1 CARDONE 42-1020 is a direct-fit replacement for the 2005-2009 Chevrolet Equinox and covers the front left and rear left positions.
Does this Pontiac Torrent window motor fit 2006-2009 models?
Yes. It fits the 2006-2009 Pontiac Torrent, and the 2007-2009 Suzuki XL-7 takes the same motor.
How is this A1 CARDONE window motor tested?
Every motor runs on a simulated window fixture that checks its speed and strength. The armature is also tested to confirm its insulation.
Does the 42-1020 window motor come with the regulator?
No. The A1 CARDONE 42-1020 comes with an instruction sheet, but the regulator, mounting hardware, wiring harness and bracket are not included.
Is this window motor plug-in or hardwired?
This window motor is plug-in. It runs on 12 V, has 2 terminals and bolts on through 3 mounting holes.
