Remanufactured Window Motor for 1995-1999 Toyota Avalon & More - A1 CARDONE 47-1135

$93.99

Vehicles this part fits

    Part number: 47-1135
    UPC: 082617374446
    Weight: 1.60 LBS
    Item Package Quantity: 1
    $93.99
    Adding to cart… The item has been added

    Have questions?

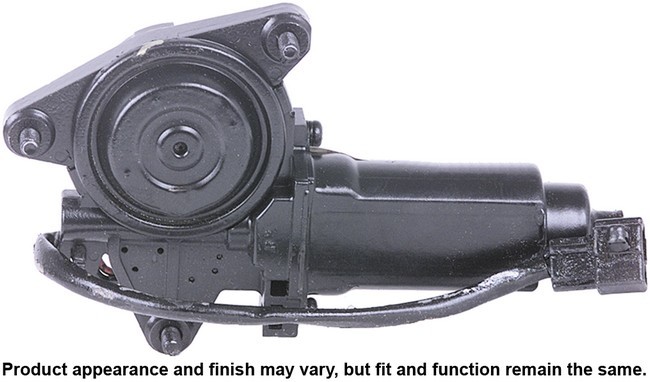

    CARDONE Reman Window Motor P/N:47-1135
    CARDONE Reman Window Motor P/N:47-1135
    $93.99
    $93.99

    A1 CARDONE 47-1135 window motor for the 1995-1999 Toyota Avalon and other vehicles raises and lowers the window glass. This remanufactured unit began as an Original Equipment core and was re-engineered, renewed and tested.

    • Each motor is tested 100% on a simulated window fixture to verify speed and strength
    • Auto up/down motors have output signals and pulse counts matched to the application and ship in the full up position
    • Bushings are gauged and re-impregnated with lubricating oil, ball bearings are replaced with new, and armatures are tested for insulation
    • Gears are gauged, then renewed or replaced if out of spec, in a less brittle material that prevents premature wear and breakage
    • Motor magnets are 100% recharged
    • Assembled with a precise amount of lubricant for quiet operation

    Quick facts

    • Part: A1 CARDONE 47-1135 window motor
    • Fits: 1995-1999 Toyota Avalon and other vehicles
    • Position: Front left, front right, rear right
    • Condition: Remanufactured

    A window that moves slowly, stops partway or does nothing when you press the switch can mean the motor is worn. The same signs can come from the switch, wiring or regulator, so with the ignition off, look at the connector and harness plug for damage or a loose fit before replacing the motor.

    Fits

    This window motor fits the 1995-1999 Toyota Avalon, the 1992-1996 Toyota Camry and the 1993-1997 Lexus GS300. As a remanufactured Original Equipment part, it is a direct-fit replacement for these vehicles.

    Specifications

    Fit and size

    • Position: front left, front right, rear right
    • Quantity per application: 1
    • Mounting: bolt on, internal threaded hole, 3 mounting holes
    • Voltage: 12 V
    • Terminal quantity: 2

    Build and materials

    • Condition: remanufactured
    • Connection: plug-in
    • Wiring harness: included
    • Anti-pinch motor: no
    • Country of origin: Mexico

    In the box

    One window motor with its wiring harness and an instruction sheet; each application takes one. The regulator, bracket and mounting hardware are not included, so plan on new mounting hardware.

    Installation notes

    • An instruction sheet comes with the motor for the installation steps.
    • The motor is fully compatible with the O.E. mounting and regulator.

    Interchange: 6983030250 · 6982007010 · 6983006020 · 6983006040 · 6983007010 · 6983032090 · 8572006010 · 8572032070

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    6983030250, 6982007010, 6983006020, 6983006040, 6983007010, 6983032090, 8572006010, 8572032070

    Frequently Asked Questions

    Is this a 1992-1996 Toyota Camry window motor?

    Yes. A1 CARDONE 47-1135 is listed for the 1992-1996 Toyota Camry, and the fitment gives a quantity of one per application.

    Is this a 1993-1997 Lexus GS300 window motor?

    Yes. A1 CARDONE 47-1135 is listed for the 1993-1997 Lexus GS300, and the part suits the front left, front right and rear right positions.

    What is tested on this A1 CARDONE window motor?

    Every motor is loaded on a simulated window fixture, which checks its speed and strength, and its armature is tested for insulation.

    Does this window motor come with the regulator?

    No. This listing is the motor with its wiring harness and an instruction sheet; the regulator, bracket and mounting hardware are not included.

    How does this window motor connect, and what voltage does it run on?

    This window motor runs on 12 V and has a plug-in connection with 2 terminals. It mounts with 3 holes and bolts on.
