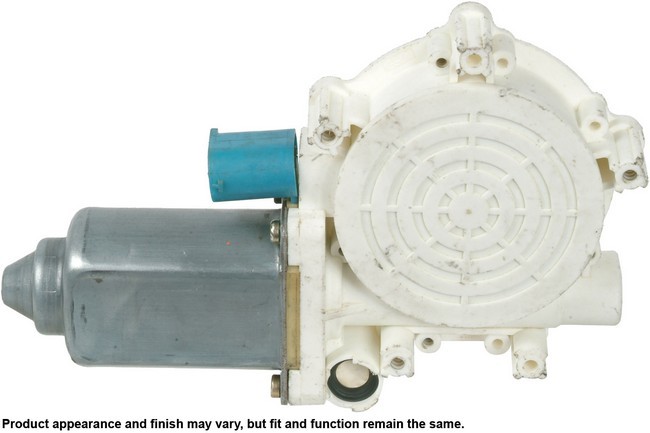

A1 CARDONE 47-2194 front right window motor for the 2002-2004 Mini Cooper raises and lowers the window glass. It is remanufactured from an Original Equipment core.
- Every motor is tested 100%, including loading on a simulated window fixture to verify speed and strength
- Bushings are gauged and re-impregnated with lubricating oil, and ball bearings are replaced with new
- Armatures are fully tested for insulation, and the motor magnets are 100% recharged
- Internal gears are gauged and inspected, then renewed for reuse or replaced if out of spec
- Assembled with a precise amount of lubricant for quiet operation
Quick facts
- Part: A1 CARDONE 47-2194 window motor
- Fits: 2002-2004 Mini Cooper
- Position: Front right
- Condition: Remanufactured
A window that moves slowly, stalls partway or grinds can mean the motor is worn, though a switch, wiring or regulator problem can also behave this way. Find the cause first: with the vehicle off, look for a loose connector at the motor and for dirt or damage in the glass track. Replacement gears are made from a stronger, less brittle material than O.E. to prevent premature wear, stripping and breakage.
Fits
It is a direct-fit replacement for the 2002-2004 Mini Cooper, which takes one on the front right. This listing is one motor; the front left motor is a separate part.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Voltage: 12 V
- Terminal quantity: 2
- Mounting: bolt on, through hole, 5 mounting holes
Build and materials
- Condition: Remanufactured
- Connection: plug-in
- Gear supplied: Yes
- Country of origin: Mexico
In the box
One window motor and one instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included, so plan on new mounting bolts rather than reusing the old ones.
Installation notes
- An instruction sheet comes with the motor.
- Motors with an auto up/down feature have output signals and pulse counts matched to the vehicle application and ship in the full up position.
Interchange: 67626910376 · 67626954892 · 67626955876
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
67626910376, 67626954892, 67626955876
Frequently Asked Questions
Is A1 CARDONE 47-2194 a window motor replacement for the 2002-2004 Mini Cooper?
Yes. A1 CARDONE 47-2194 is a front right window motor for the 2002-2004 Mini Cooper. The front left side takes a separate part.
Does the A1 CARDONE window motor come with the regulator?
No. This listing is one remanufactured window motor with an instruction sheet. The regulator, mounting hardware, bracket and wiring harness are not included.
What voltage and connection does this window motor use?
This front right window motor is a 12 V unit with a plug-in connection and 2 terminals. It bolts on through 5 mounting holes.
Why would a front right window move slowly or stop partway?
A worn motor is one possibility. A switch, wiring or regulator problem can also make glass slow or stall partway, so a shop can test the circuit if the cause is unclear.
How is this remanufactured window motor tested?
Each A1 CARDONE 47-2194 motor is tested 100%, including loading on a simulated window fixture to verify speed and strength.
