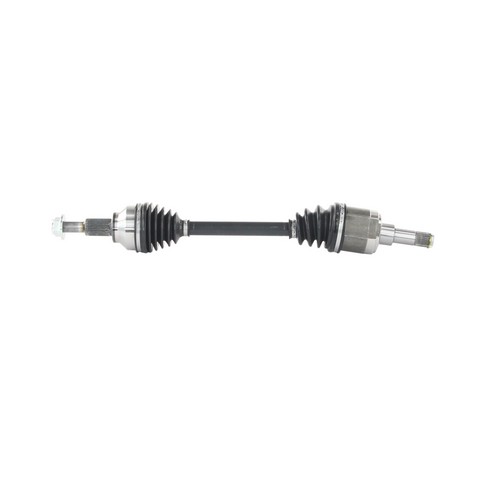

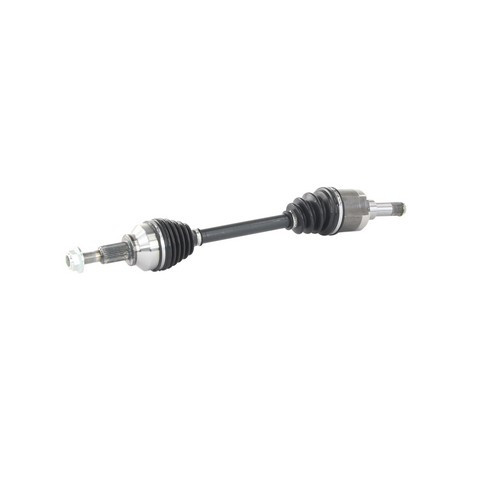

TrakMotive CH-8226 front left CV axle shaft for the 2008-2010 Dodge Grand Caravan and other vehicles carries drive torque to the front left wheel. Its joints let the wheel turn and follow the suspension as it moves.
- Neoprene boots on both the inboard and outboard joints
- Self-locking axle nut with an M22x1.5 thread
- Conventional outboard joint with 32 splines
- Male inboard joint with 25 splines
- Overall compressed length of 671 mm (26.42 in)
Quick facts
- Part: TrakMotive CH-8226 CV axle shaft
- Fits: 2008-2010 Dodge Grand Caravan and other vehicles
- Position: Front left
- Condition: New
A clicking or popping noise when turning, grease thrown from a torn boot, or vibration at speed can mean a worn axle. A worn wheel bearing, an unbalanced tire or a tired motor mount can be behind some of the same signs, so find the cause before buying an axle.
Fits
It fits the 2008-2010 Dodge Grand Caravan and the 2008-2010 Chrysler Town & Country. The 2008-2010 Dodge Grand Caravan takes one axle on the front left. This listing is one axle; the front right is its own part and is normally replaced at the same time.
Specifications
Fit and size
- Position: Front left
- Quantity for this side: 1
- Overall compressed length: 671 mm (26.42 in)
- Axle nut: M22x1.5 thread, 32 mm (1.25 in) hex
- Splines: 25 inboard, 32 outboard
Build and materials
- Inboard joint: male
- Outboard joint: conventional
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft with its axle nut. The ABS tone ring is not included.
Interchange: 66-3551 · 60-3551 · DC-2141 · 80-1975 · CH-8-8600 · AX-9161
NCV12503 · 139226 · 72153 · 40714016 · 4880211AC · 4880211AD · 4880211AE · 4880211AF · GM30528
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
NCV12503, 139226, 66-3551, 60-3551, DC-2141, 80-1975, 72153, 40714016, CH-8-8600, 4880211AC, 4880211AD, 4880211AE, 4880211AF, GM30528, CH-8226, AX-9161
Frequently Asked Questions
Is this TrakMotive CH-8226 front left axle right for the 2008-2010 Chrysler Town & Country?
Yes. TrakMotive CH-8226 is a front left CV axle shaft for the 2008-2010 Chrysler Town & Country. The front right is a separate part.
Does the TrakMotive CV axle come with the axle nut?
Yes. TrakMotive CH-8226 includes a self-locking axle nut. The ABS tone ring is not included.
What size is the axle nut on the TrakMotive CV axle shaft?
The nut has an M22x1.5 thread and a 32 mm hex (1.25 in), and it locks itself in place. A 32 mm socket fits it.
How can I tell if a front left CV axle boot is failing?
A torn boot with grease flung around the wheel well, or clicking when turning, can mean a worn joint. Inspect the boots with the engine off and cool.
Is TrakMotive CH-8226 the same as 66-3551?
Yes. 66-3551 is listed as an interchange number for TrakMotive CH-8226, so this axle replaces that number.
