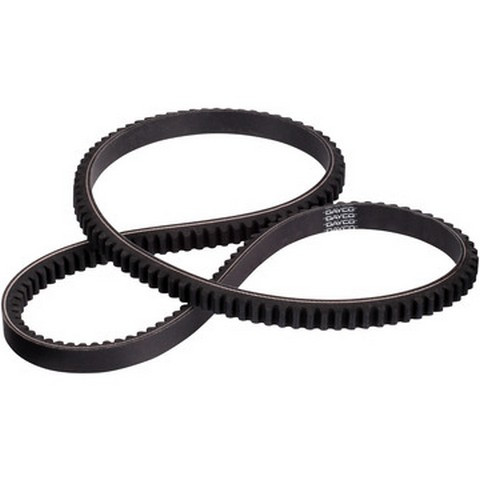

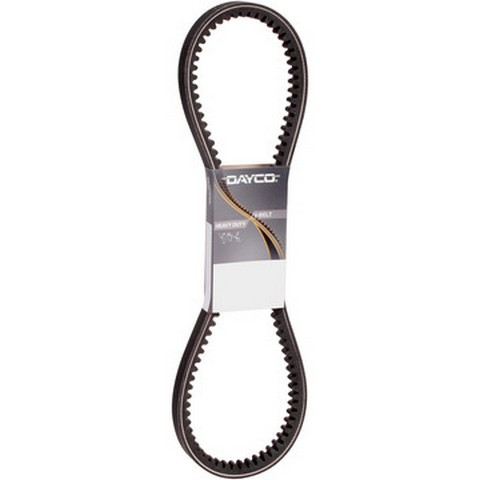

Dayco 17325 accessory drive belt for the 1983-1987 Toyota Corolla and other vehicles carries engine power to the accessories it drives. This Dayco accessory drive belt is listed for alternator, power steering, air conditioning, water pump and fan positions.
- Belt body made from a synthetic rubber compound
- Bottom cog construction, not banded
- Operates from -37.2 °C to 79.4 °C (-35 °F to 175 °F)
- Meets SAE J636 and SAE J637 standards
- 36-degree belt angle
Quick facts
- Part: Dayco 17325 accessory drive belt
- Fits: 1983-1987 Toyota Corolla and other vehicles
- Position: alternator, power steering, air conditioning, air conditioning to alternator, water pump and air conditioning, fan and idler, air conditioning and idler
- Material: Synthetic rubber compound
- Condition: New
A belt that squeals, or shows cracks or fraying when you look at it with the engine off, can be worn out. Before you replace it, rule out a loose or failing tensioner, a dragging pulley and oil or coolant on the belt, since any of them can also make a belt squeal or wear early.
Fits
The 1983-1987 Toyota Corolla, the 1987-1988 Nissan Sentra and the 1985-1987 Jeep Cherokee 4-cylinder 2.1L all take this belt, and so do many other vehicles. If your car is not one of these, enter its year, make and model in the "Vehicles it fits" section before you order.
Specifications
Fit and size
- Position: alternator, power steering, air conditioning, air conditioning to alternator, water pump and air conditioning, fan and idler, air conditioning and idler
- Quantity per vehicle: 1 or 2, depending on the application
- Angle: 36 degrees
- Operating temperature: -37.2 °C to 79.4 °C (-35 °F to 175 °F)
Build and materials
- Material: synthetic rubber compound
- Construction: bottom cog
- Banded belt: no
- Standards: SAE J636, SAE J637
- Condition: New
In the box
One accessory drive belt. Passenger cars such as the 1983-1987 Toyota Corolla take one belt, while some heavy-truck applications take two.
Interchange: 141-0299 · L51-17325 · L38-0825 · 25-08255 · 25-9325 · 25-9325-2 · 25-9325HD · 12.5X810 · 12.5X825 · 17-326
2T17325 · 9325HD · 7325 · 3315 · 3320 · RPF3315 · RPF3320 · 9325 · 32517
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
17325, 2T17325, 9325HD, 7325, 3315, 3320, RPF3315, RPF3320, 141-0299, 9325, 32517, L51-17325, L38-0825, 25-08255, 25-9325, 25-9325-2, 25-9325HD, 12.5X810, 12.5X825, 17-326
Frequently Asked Questions
Is this the right drive belt for a 1983-1987 Toyota Corolla?
Yes. Dayco 17325 fits the 1983-1987 Toyota Corolla, and the 1984-1985 cars with the L4-1.6L engine are included. Each of those cars takes one belt.
Does Dayco 17325 fit the 1985-1987 Jeep Cherokee 4-cylinder 2.1L?
Yes. The 1985-1987 Jeep Cherokee with the L4-2.1L engine is on the fitment list for Dayco 17325.
What temperature range is this accessory drive belt rated for?
This belt operates from -37.2 °C to 79.4 °C (-35 °F to 175 °F).
How do I tell if this bottom-cog drive belt is worn out?
Glazing, cracks or fraying, seen with the engine off, can mean the belt is worn.
Which SAE standards does Dayco 17325 meet?
Dayco 17325 is listed to SAE J636 and SAE J637. It is a bottom-cog belt made from a synthetic rubber compound and is not banded.
