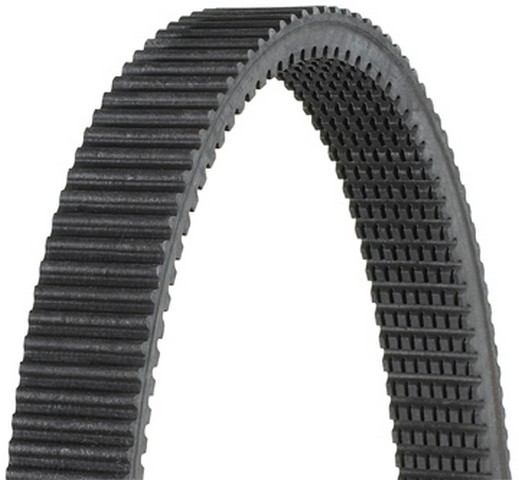

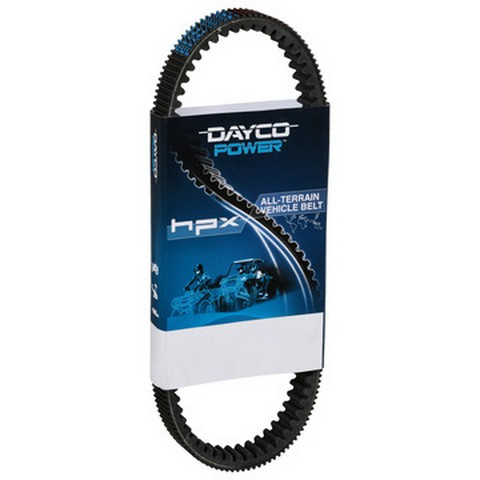

Dayco HPX HPX2204 CVT belt for the 2004-2006 Polaris Sportsman 700 and other vehicles carries engine power between the drive and driven clutches of the CVT.
- EBS (Engine Braking System) belt design
- Rubber top material
- Cogged top, with fine cogs on both the top and the bottom of the belt
- Operating temperature range of -40 °C to 112.7 °C (-40 °F to 235 °F)
Quick facts
- Part: Dayco HPX HPX2204 CVT belt
- Also called: cvt transmission belt
- Fits: 2004-2006 Polaris Sportsman 700 and other vehicles
- Position: Drive belt
- Material: Rubber (top)
- Condition: New
A belt that shows cracks or glazing, or one that slips under load, can be worn out. These signs alone do not prove the belt is at fault, since a worn clutch is another common source. The CVT runs on one belt, and this listing is one belt.
Fits
The 2004-2006 Polaris Sportsman 700, the 2006 Polaris Sportsman 500 Efi and the 2006 Polaris Sportsman 500 Efi X2 are among the vehicles this belt fits, along with many other Polaris models.
Specifications
Fit and size
- Position: Drive belt
- Top width: 1.193 in (30.303 mm)
- Outside circumference: 40.906 in (1039.013 mm)
- Thickness: .460 in
- Angle: 28 degrees
- Quantity per vehicle: 1
Build and materials
- Top material: Rubber
- Cogs: top cogged, fine top cog type and fine bottom cog type
- EBS (Engine Braking System) belt: Yes
- Condition: New
- Country of origin: Italy
Interchange: UA413 · 19G4006E · 20G4022E · PL30072 · 30GBS1040 · WE262204
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
UA413, 19G4006E, 20G4022E, PL30072, 30GBS1040, WE262204, 3211069, 3211091, 3211095
Frequently Asked Questions
Does the Dayco HPX HPX2204 belt fit the 2006 Polaris Sportsman 500 Efi?
Yes. This Dayco HPX HPX2204 CVT belt fits the 2006 Polaris Sportsman 500 Efi and many other Polaris models. Find your own year and model in the "Vehicles it fits" section.
What size is the Dayco HPX HPX2204 belt?
Top width is 1.193 in (30.303 mm), outside circumference is 40.906 in (1039.013 mm), thickness is .460 in and the angle is 28 degrees.
Is this CVT belt an EBS belt?
Yes. The belt is listed as an EBS (Engine Braking System) belt, with a rubber top and fine cogs on the top and bottom.
How can I tell if my CVT transmission belt is worn?
With the engine off and cool, look the belt over for cracks, glazing or missing cogs, and measure its top width against the 1.193 in (30.303 mm) spec.
Does HPX2204 cross-reference to UA413?
Yes. UA413 is one of the numbers on the interchange list for this Dayco HPX HPX2204 belt, shown at the bottom of the page.
