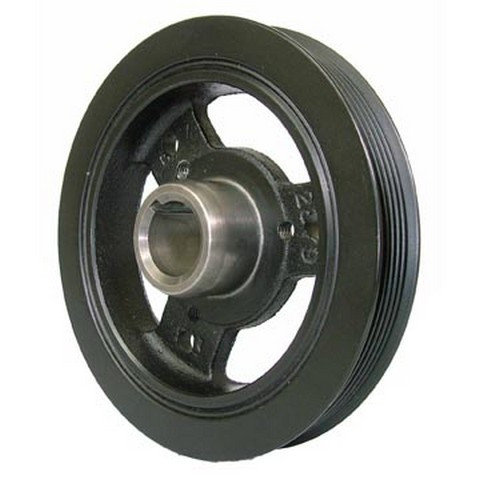

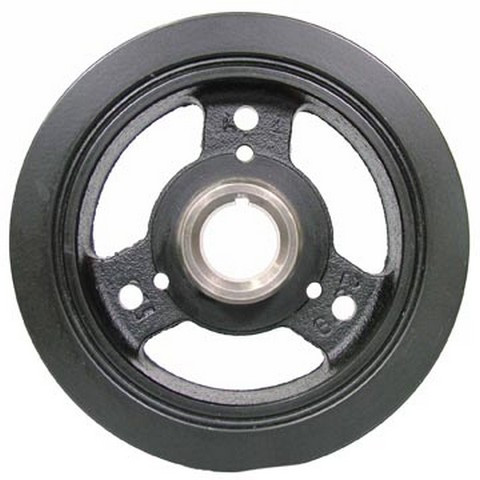

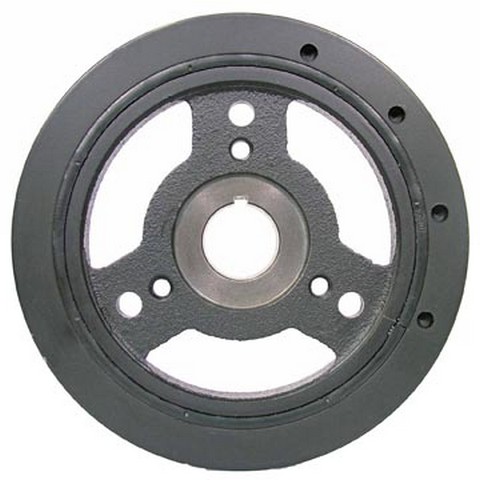

    Dayco Engine Harmonic Balancer P/N:PB1198N
    Dayco Engine Harmonic Balancer P/N:PB1198N
    $105.99
    $105.99

    PowerBond by Dayco PB1198N harmonic balancer for the 1997-2002 Jeep Wrangler 4-cylinder 2.5L and other vehicles damps crankshaft vibration and drives the serpentine belt. Also called an engine harmonic balancer, it mounts on the crankshaft.

    • Grey iron outer ring
    • Integrated serpentine pulley for the accessory belt
    • Timing marks on the balancer
    • Neutral balance with no counterweight

    Quick facts

    • Part: PowerBond by Dayco PB1198N harmonic balancer
    • Also called: engine harmonic balancer
    • Fits: 1997-2002 Jeep Wrangler 4-cylinder 2.5L and other vehicles
    • Material: Grey iron outer ring
    • Condition: New

    A harmonic balancer that is wearing out can show cracks, a ring that has shifted, a wobbling pulley, or a belt that squeals or wanders. A worn belt or a loose accessory can look much the same, so with the engine off and cool, inspect those before you replace the harmonic balancer.

    Fits

    This harmonic balancer is a direct-fit replacement for the 1996-2002 Dodge Dakota 4-cylinder 2.5L and the 1991-2000 Jeep Cherokee 4-cylinder 2.5L. Each engine takes one, on the crankshaft. Driving something else? Search your own year, make and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Overall outside diameter: 170.60 mm (6.717 in)
    • Pulley outside diameter: 165.000 mm (6.497 in)
    • Crank bore: 28.53 mm (1.124 in)
    • Nose outside diameter: 45.25 mm (1.782 in)
    • Overall width: 37.20 mm (1.465 in)
    • Ring width: 25.40 mm (1.000 in)
    • Bolt holes: 3

    Build and materials

    • Outer ring material: grey iron
    • Integrated pulleys: 1, serpentine
    • Counterweight balance: neutral, no counterweight
    • Timing marks: yes
    • Crank trigger/exciter plate: no
    • Condition: new

    In the box

    One harmonic balancer. Mounting hardware, a woodruff key and installation instructions are not included, and the old bolts may not be reusable, so plan on new ones.

    Interchange: 594-254 · DA-2490
    102252 · 6003338

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    102252, 594-254, 6003338, DA-2490

    Frequently Asked Questions

    Will this harmonic balancer fit the 1997-2002 Jeep Wrangler 4-cylinder 2.5L?

    Yes. The PowerBond by Dayco PB1198N fits the 1997-2002 Jeep Wrangler 4-cylinder 2.5L, and each engine takes one. Look up other vehicles in the "Vehicles it fits" section.

    Is this a harmonic balancer for the 1991-2000 Jeep Cherokee 4-cylinder 2.5L?

    Yes. This harmonic balancer is a direct-fit replacement for the 1991-2000 Jeep Cherokee 4-cylinder 2.5L.

    Does the PowerBond by Dayco PB1198N come with bolts or a woodruff key?

    No. The PowerBond by Dayco PB1198N listing is one harmonic balancer; mounting hardware, a woodruff key and installation instructions are not included.

    What size is the crank bore on this harmonic balancer?

    The crank bore is 28.53 mm (1.124 in). The overall outside diameter is 170.60 mm (6.717 in), and the serpentine pulley measures 165.000 mm (6.497 in).

    What can a damaged harmonic balancer look like with the engine off?

    Visible cracks or a ring that has shifted can mean the harmonic balancer is damaged. Vibration or a wandering belt while driving can point the same way, and a shop can test it.
