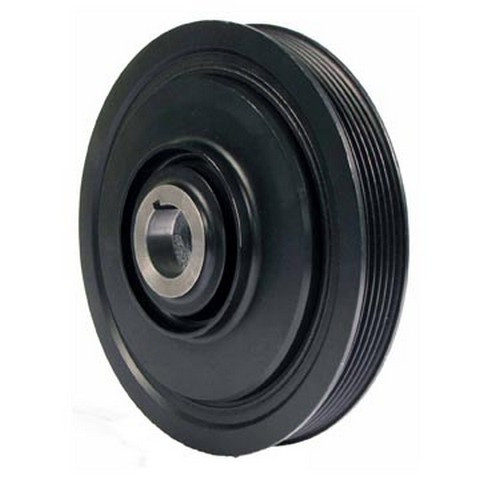

Tame crankshaft torsional vibration and keep the accessory belt driving smoothly with the PowerBond by Dayco Engine Harmonic Balancer PB1545N, a premium OE-replacement balancer for a range of Honda-family V6 engines. It's a direct-fit replacement for the 2003-2006 Acura MDX [V6-3.5L], 2007-2009 Acura MDX [V6-3.7L], 2005-2008 Acura RL [V6-3.5L], 2004-2008 Acura TL [V6-3.2L], 2007-2008 Acura TL [V6-3.5L], 2003-2007 Honda Accord [V6-3.0L], 2005-2010 Honda Odyssey [V6-3.5L], 2005-2008 Honda Pilot [V6-3.5L], 2006-2008 Honda Ridgeline [V6-3.5L], and 2004-2007 Saturn Vue [V6-3.5L]. See the Buyer's Guide tab for the full application list.
- Cast-iron outer ring for the mass that helps absorb crankshaft torsional vibration.
- Integrated serpentine pulley: one pulley with 6 grooves and a 6.930 in / 176 mm outside diameter to route the accessory drive belt.
- Timing marks: included for setting engine timing. Neutral balance, no counterweight.
- Not included: mounting hardware, Woodruff key, and installation instructions — consult the vehicle service information for the correct fasteners and whether they may be reused.
Overall outside diameter 7.107 in / 180.50 mm, overall width 1.863 in / 47.30 mm, ring width 0.938 in / 23.80 mm, and a 1.182 in / 30.00 mm crank bore. Country of origin: China. If a worn or separated harmonic balancer is the cause of belt wobble or vibration, this replaces it.
Interchange: 102235 · 594-267 · 594267 · 6003340 · DA-3195 · DA3195 · Manufacturer part number PB1545N
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does this harmonic balancer do?
It helps absorb the crankshaft's torsional (rotational) vibration and, through its integrated pulley, drives the engine's serpentine accessory belt.
Will the PB1545N fit my vehicle?
It's a direct-fit replacement for the listed Acura MDX, RL and TL, Honda Accord, Odyssey, Pilot and Ridgeline, and Saturn Vue V6 applications. Check the Buyer's Guide tab against your engine code.
Does it come with mounting hardware or a Woodruff key?
No. Mounting hardware, the Woodruff key, and installation instructions are not included. Consult the vehicle service information for the correct fasteners and whether they may be reused.
Does this balancer have timing marks?
Yes, timing marks are included. It has a neutral balance with no counterweight.
What interchange numbers does this part cross to?
It interchanges with 102235, 594-267 (594267), 6003340, and DA-3195 (DA3195). Its own manufacturer part number is PB1545N.
