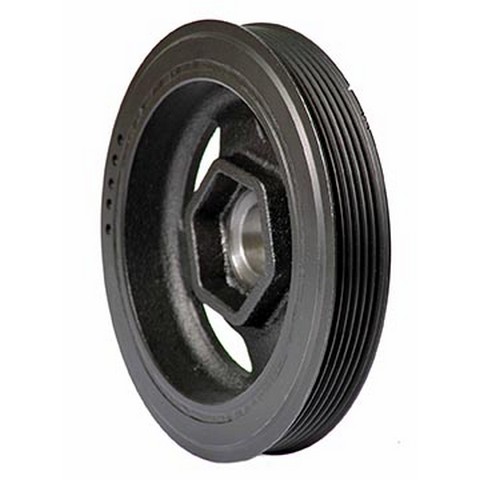

Dayco PB1713N harmonic balancer for the 2008-2017 Honda Accord V6 3.5L and other vehicles damps crankshaft vibration and drives the serpentine belt. This listing is one Dayco harmonic balancer, also called an engine harmonic balancer; the crankshaft takes one.
- Outer ring made of cast iron
- One integrated serpentine pulley, 175.50 mm in outside diameter
- Timing marks on the balancer
- Neutral balance with no counterweight
- Crank bore of 30.00 mm
Quick facts
- Part: Dayco PB1713N harmonic balancer
- Also called: engine harmonic balancer
- Fits: 2008-2017 Honda Accord V6 3.5L and other vehicles
- Material: Cast iron outer ring
- Condition: New
Engine vibration, belt noise or visible cracks in the ring can mean the balancer is worn, though a worn serpentine belt or a weak tensioner can be behind the same noise.
Fits
The vehicles it fits include the 2008-2017 Honda Accord V6 3.5L, the 2007-2026 Honda Odyssey and the 2009-2022 Honda Pilot, along with many other Honda and Acura models. Other vehicles are covered under the "Vehicles it fits" section, so look up your own year, model and engine there.
Specifications
Fit and size
- Quantity per vehicle: 1
- Overall outside diameter: 180.00 mm (7.087 in)
- Pulley outside diameter: 175.50 mm (6.910 in)
- Crank bore: 30.00 mm (1.182 in)
- Overall width: 45.50 mm (1.792 in)
- Ring width: 31.00 mm (1.221 in)
Build and materials
- Type: harmonic balancer with one integrated serpentine pulley
- Outer ring material: cast iron
- Counterweight balance: neutral, no counterweight
- Timing marks: yes
- Crank trigger/exciter plate: none
- Condition: New
In the box
One harmonic balancer. Hardware, a woodruff key and installation instructions are not included, so plan on new fasteners; the old ones may not be reusable.
Interchange: 594-429 · DA-3195
60051661
This part cross-references / interchanges with the following part numbers:
NA, 594-429, 60051661, DA-3195
Frequently Asked Questions
Will this Honda Accord harmonic balancer fit a 2008-2017 Honda Accord V6 3.5L?
Yes. Dayco PB1713N is listed for the 2008-2017 Honda Accord V6 3.5L, and it also fits the 2007-2026 Honda Odyssey.
Does the Dayco PB1713N harmonic balancer come with a woodruff key or bolts?
No. This listing is one harmonic balancer. Hardware, a woodruff key and instructions are not included, so plan on new fasteners.
What are the crank bore and pulley sizes on the Dayco PB1713N?
Dayco PB1713N has a 30.00 mm crank bore and a 180.00 mm overall outside diameter. Its serpentine pulley measures 175.50 mm across.
How can I tell if a harmonic balancer is wearing out?
With the engine off and cool, look over the balancer for cracks or damage to the cast iron ring and its timing marks. Vibration or belt noise while driving can also be signs; a shop can test it further.
Does 594-429 cross over to this harmonic balancer?
Yes. 594-429 is one of the numbers Dayco PB1713N replaces.
