Serpentine Belt for 2011-2021 Western Star 4900EX & More - Dayco 5120865

$76.99

Vehicles this part fits

    Part number: 5120865
    UPC: 036687364081
    Condition: New
    Weight: 1.20 LBS
    Item Package Quantity: 1
    $76.99
    Adding to cart… The item has been added

    Have questions?

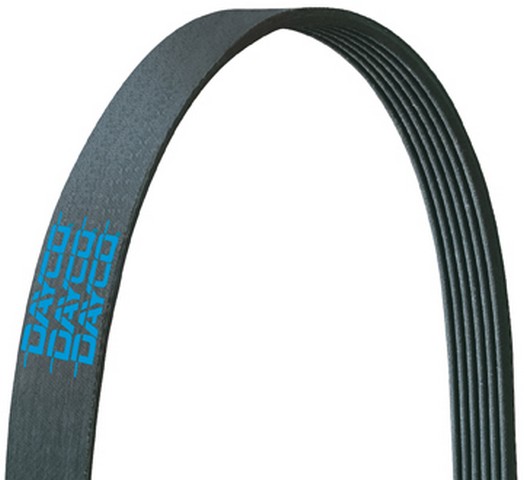

    Dayco Serpentine Belt P/N:5120865
    Dayco Serpentine Belt P/N:5120865
    $76.99
    $76.99

    Dayco 5120865 serpentine belt for the 2011-2021 Western Star 4900EX 6-cylinder 14.9L and other vehicles turns the engine's belt-driven accessories from one belt. This Dayco drive belt covers fan, alternator, water pump and main drive applications.

    • EPDM body with aramid reinforcement
    • Straight rib profile with 12 ribs on a K-section
    • Operating temperature range of -45 F to 212 F (-42.7 C to 100 C)
    • Built to SAE J1459 and SAE J2432

    Quick facts

    • Part: Dayco 5120865 serpentine belt
    • Fits: the 2011-2021 Western Star 4900EX 6-cylinder 14.9L and other vehicles
    • Position: fan and alternator, fan, fan and water pump, water pump, fan, alternator and water pump, main drive
    • Material: EPDM, aramid reinforced
    • Condition: New

    Cracks, fraying, glazed ribs or a squeal can mean the belt is worn. A squeal alone does not prove the belt is at fault, since a weak tensioner can make the same noise. Each engine takes one belt.

    Fits

    Vehicles it fits include the 2011-2021 Western Star 4900EX 6-cylinder 14.9L, the 2013-2021 Freightliner 122SD 6-cylinder 14.9L and the 2009-2020 Freightliner Cascadia 6-cylinder 14.9L. If your truck is not one of these, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: fan and alternator, fan, fan and water pump, water pump, fan, alternator and water pump, main drive
    • Quantity per vehicle: 1
    • Number of ribs: 12
    • Cross section: K-Section
    • Length: 86.50 in (2197.10 mm) and 87.13 in (2213.11 mm)

    Build and materials

    • Material: EPDM, aramid reinforced
    • Rib profile: straight rib
    • Rib depth: standard
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -45 F to 212 F (-42.7 C to 100 C)
    • Condition: New

    Interchange: 25-120864 · 25-120864HD · 25-120866HD
    12K864 · K120864HD · K120866HD · 12PK2195 · 12PK2200 · K120864 · 4120865 · 4120865X

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    12K864, K120864HD, K120866HD, 12PK2195, 12PK2200, K120864, 4120865, 4120865X, 25-120864, 25-120864HD, 25-120866HD, 2893584, 3682283, CD0397-203, 4120864APDYC, D1108-4213, D84-1000-1122195, D84-1000-6122195, 01-32161-200, 3625640C1, 989198

    Frequently Asked Questions

    Is the Dayco 5120865 serpentine belt right for the 2011-2021 Western Star 4900EX 6-cylinder 14.9L?

    Yes. Dayco 5120865 fits the 2011-2021 Western Star 4900EX 6-cylinder 14.9L. Owners of other trucks can find their year and engine in the "Vehicles it fits" section.

    Is this DAYCO fan belt a serpentine belt?

    Yes. Dayco 5120865 is a 12-rib serpentine belt with a straight rib profile, and it covers fan, alternator, water pump and main drive applications.

    What is this belt made of?

    The body is EPDM with aramid reinforcement. It has a straight rib profile and a K-section cross section.

    How can I tell if this belt is worn out?

    With the engine off, look for cracks, fraying or glazed ribs, and notice any squealing while driving. A shop can check the tensioner and pulleys.

    Is K120864 an interchange number for Dayco 5120865?

    Yes. K120864 is on the Interchange line for Dayco 5120865, along with 12PK2195, 12PK2200 and other cross-reference numbers.
