Serpentine Belt for 2012-2014 Ford Edge - Dayco 6060902

$50.99

Vehicles this part fits

    Part number: 6060902
    UPC: 036687839008
    Condition: New
    Weight: 0.90 LBS
    Item Package Quantity: 1
    $50.99
    Adding to cart… The item has been added

    Have questions?

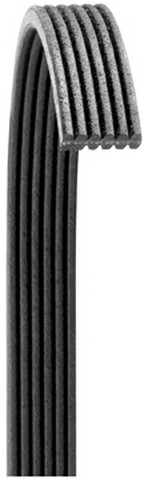

    Dayco Serpentine Belt P/N:6060902
    Dayco Serpentine Belt P/N:6060902
    $50.99
    $50.99

    Dayco 6060902 serpentine belt for the 2012-2014 Ford Edge 4-cylinder 2.0L is a Dayco drive belt that powers the engine's accessories. It runs on the engine's main drive.

    • EPDM belt body with aramid reinforcement
    • Six straight ribs, 0.82 in wide, with a double-sided K-section profile
    • Operating range of -45 °F to 212 °F (-42.7 °C to 100 °C)
    • Meets SAE J1459 and SAE J2432

    Quick facts

    • Part: Dayco 6060902 serpentine belt
    • Fits: 2012-2014 Ford Edge 4-cylinder 2.0L
    • Position: Main drive
    • Material: EPDM, aramid reinforced
    • Condition: New

    Cracks across the ribs, fraying or a squeal at start-up can mean this belt is worn, though a weak belt tensioner or a misaligned idler pulley can be behind them too, so look at both before you replace the belt.

    Fits

    This is the serpentine belt for the 2013 Ford Edge 4-cylinder 2.0L, and the same part number covers the 2012 and 2014 model years with that engine.

    Specifications

    Fit and size

    • Position: Main drive
    • Quantity per vehicle: 1
    • Number of ribs: 6
    • Belt width: 0.82 in
    • Effective length: 90.16 in (2290.07 mm)
    • Outside length: 91.16 in (2315.47 mm)

    Build and materials

    • Material: EPDM, aramid reinforced
    • Rib profile: straight rib, double sided
    • Cross section: double-sided K-section
    • Rib depth: standard
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -45 °F to 212 °F (-42.7 °C to 100 °C)
    • Condition: New

    In the box

    This listing holds one serpentine belt, and the engine takes one.

    Interchange: JK6-907 · 25-D060901
    6DK901 · D4060900 · DK060901

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    6DK901, NA, D4060900, DK060901, JK6907, JK6-907, 25-D060901, BT4E-6C301-DA, BT4Z-8620-F

    Frequently Asked Questions

    Does the Dayco 6060902 work as a serpentine belt replacement on the 2012-2014 Ford Edge 4-cylinder 2.0L?

    Yes. Dayco 6060902 is the main drive belt listed for the 2012-2014 Ford Edge 4-cylinder 2.0L, and the engine takes one belt.

    Is the 2014 Ford Edge 4-cylinder 2.0L covered, or is this Ford Edge belt replacement only for earlier years?

    Yes. The 2014 Ford Edge 4-cylinder 2.0L is listed for Dayco 6060902, along with the 2012 and 2013 model years.

    What material is this Dayco serpentine belt made of?

    The belt is EPDM with aramid reinforcement. It has six straight ribs and a double-sided K-section profile, and its rib depth is standard.

    What does a glazed or chunked serpentine belt tell me?

    With the engine off and cool, a shiny glazed surface, missing pieces of rib or cracks across the ribs can point to a worn belt. A shop can check tension and pulley alignment.

    Is DK060901 interchangeable with the Dayco 6060902 belt?

    Yes. DK060901 is on the Interchange line for Dayco 6060902, along with JK6-907, 25-D060901, 6DK901 and D4060900.
