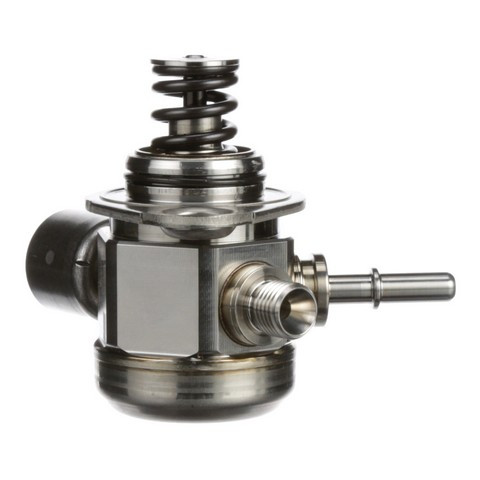

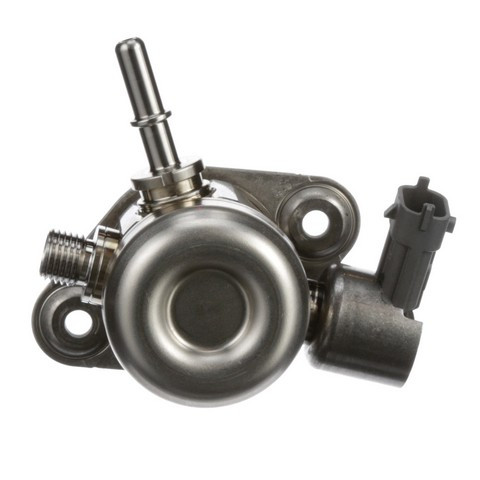

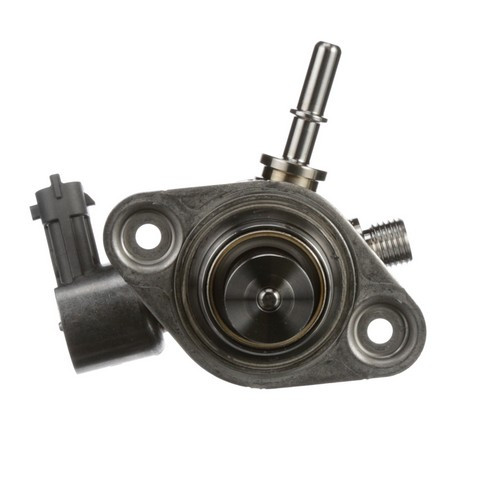

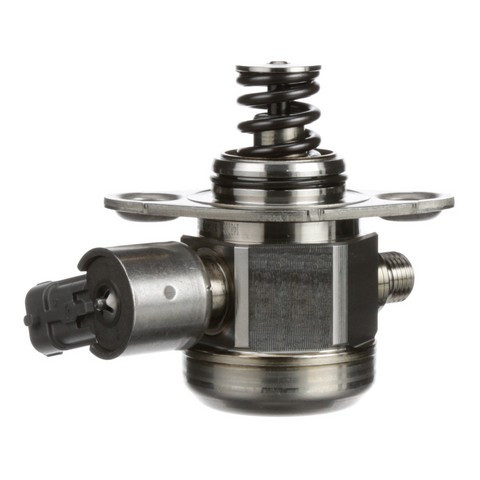

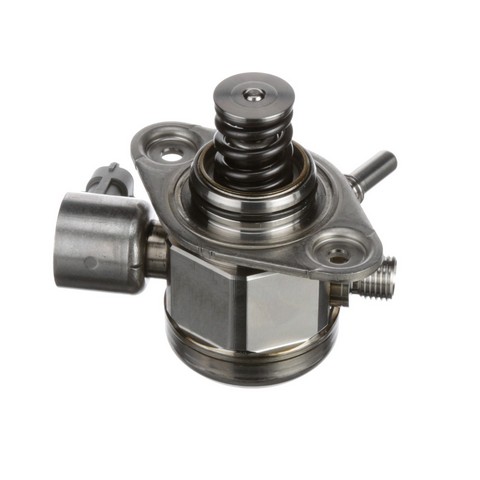

Delphi HM10020 direct injection high pressure fuel pump for the 2014 Hyundai Sonata 4-cylinder 2.0L or 2.4L and other vehicles feeds fuel at high pressure to a gasoline direct injection engine. This mechanically driven GDi pump uses the latest generation of OE technology and meets OE specifications.
- Delivers fuel at pressures that can range from 2,000 to 2,800 PSI
- High-flow, mechanically driven design builds rail pressure quickly for fast start times
- Fuel goes directly into the engine combustion chamber for increased horsepower and fuel economy
Quick facts
- Part: Delphi HM10020 direct injection high pressure fuel pump
- Fits: 2014 Hyundai Sonata 4-cylinder 2.0L or 2.4L and other vehicles
- Condition: New
Long cranking, hesitation or a check engine light can mean a weak pump, though other fuel or ignition faults produce those symptoms too. With the engine off and cool, look over the pump and its connections for fuel dampness or seepage. A shop can pressure-test the system and pin down the cause before the pump is replaced.
Fits
This GDi pump is also a direct-fit replacement for the 2014-2015 Kia Optima 4-cylinder 2.0L or 2.4L and the 2014-2015 Kia Sorento 4-cylinder 2.4L. If your car is not named here, open the "Vehicles it fits" section and look up your exact model and engine.
Specifications
- Quantity per vehicle: 1
- Fuel pressure: 2,000 to 2,800 PSI
- Drive: mechanical
- Meets OE specifications
- Condition: New
- Country of origin: China
In the box
One direct injection high pressure fuel pump and one instruction sheet. This listing holds one pump, and each vehicle takes one.
Interchange: 35320-2G740
4032034 · CHM10020 · M73119 · HP16411 · FI1555 · GDP716K
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4032034, CHM10020, M73119, 35320-2G740, HP16411, FI1555, GDP716K
Frequently Asked Questions
Does the Delphi HM10020 fit the 2014-2015 Kia Optima 4-cylinder 2.0L or 2.4L?
Yes. The Delphi HM10020 fits the 2014-2015 Kia Optima with the 4-cylinder 2.0L or 2.4L engine. The "Vehicles it fits" section shows the other vehicles it fits.
Does this direct injection high pressure fuel pump come with an instruction sheet?
Yes. The package contents are one pump and one instruction sheet. Nothing else is listed in the package.
What fuel pressure can the Delphi HM10020 deliver?
The Delphi HM10020 can deliver fuel at high pressures that range from 2,000 to 2,800 PSI. It is a mechanically driven pump.
Does this GDi fuel pump meet OE specifications?
Yes. This pump meets OE specifications and uses the latest generation of OE technology for gasoline direct injection systems.
How does a mechanically driven GDi pump help with starting?
Its high fuel flow lets rail pressure build up quickly, which supports fast start times. The pump then delivers fuel directly into the engine combustion chamber.
