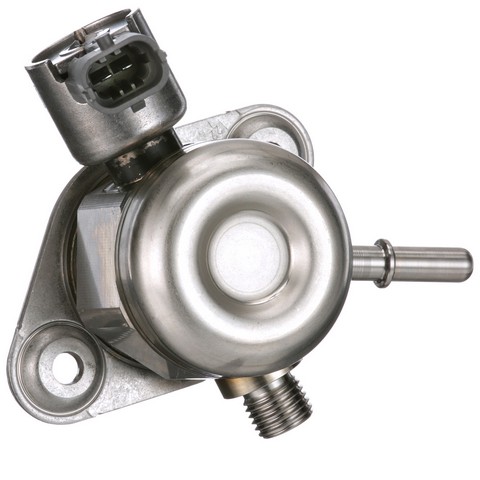

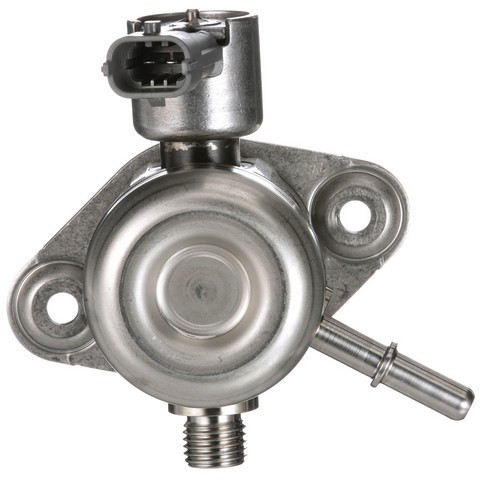

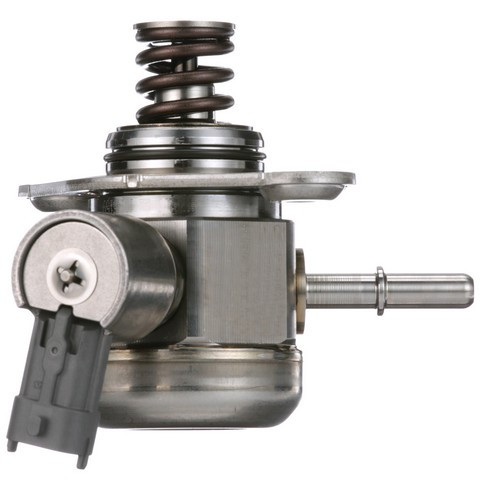

Delphi HM10035 direct injection high pressure fuel pump for the 2015-2018 Ford Focus 3-cylinder 1.0L and other vehicles raises fuel pressure for the engine's gasoline direct injection system. This GDi pump supplies the fuel rail.
- Delivers fuel at high pressures that can range from 2,000 to 2,800 PSI
- Mechanically driven, high-flow pump that builds rail pressure quickly for fast start times
- Direct delivery of fuel into the engine combustion chamber, intended to increase horsepower and fuel economy
Quick facts
- Part: Delphi HM10035 direct injection high pressure fuel pump
- Fits: 2015-2018 Ford Focus 3-cylinder 1.0L and other vehicles
- Condition: New
Long cranking before the engine starts, rough running or a loss of power can mean the pump is weakening. These signs alone do not prove the pump is at fault, because a restricted fuel supply from the tank can produce the same symptoms. This listing is one pump, and the engine takes a single pump.
Fits
The pump fits the 2015-2018 Ford Focus 3-cylinder 1.0L, the 2018-2021 Ford EcoSport 3-cylinder 1.0L and the 2014-2017 Ford Fiesta 3-cylinder 1.0L. It meets OE specifications.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Country of origin: China
In the box
One direct injection high pressure fuel pump and one instruction sheet.
Interchange: CM5Z 9350-A
CHM10035 · GDP615
This part cross-references / interchanges with the following part numbers:
CHM10035, CM5Z 9350-A, GDP615
Frequently Asked Questions
Does the Delphi HM10035 fit the 2015-2018 Ford Focus 3-cylinder 1.0L?
Yes. Delphi HM10035 is listed for the 2015-2018 Ford Focus 3-cylinder 1.0L, and the engine takes one pump.
Does this direct injection high pressure fuel pump come with instructions?
Yes. The package contains the pump and an instruction sheet.
What fuel pressure can the Delphi HM10035 deliver?
The Delphi HM10035 can deliver fuel at pressures ranging from 2,000 to 2,800 PSI. It is mechanically driven and built for quick rail pressure build-up.
What symptoms can a weak GDi fuel pump cause?
Long cranking before starting, rough running or reduced power can mean the pump is weak. A shop can test fuel pressure, since that check needs the engine running.
Is GDP615 an interchange number for the Delphi HM10035?
Yes. GDP615 is listed as an interchange number for Delphi HM10035, along with CM5Z 9350-A and CHM10035.
