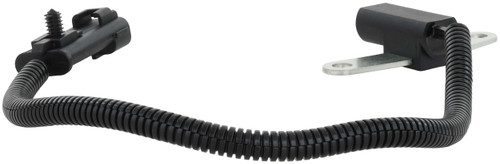

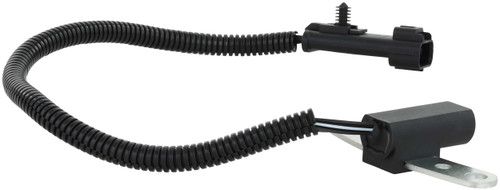

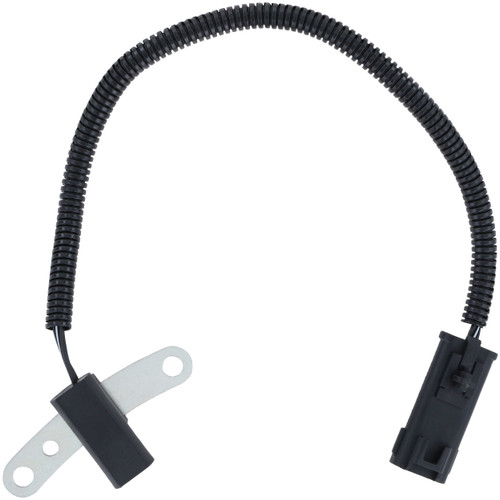

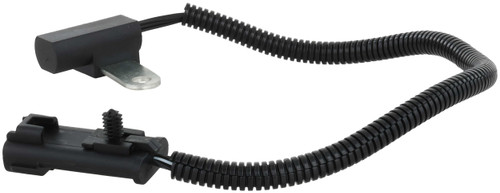

Delphi SS12463 crankshaft position sensor for the 2001-2002 Jeep Wrangler 4-cylinder 2.5L, the 2002-2004 Wrangler 6-cylinder 4.0L and other vehicles reports crankshaft position to the engine computer. It is made to meet or exceed OE requirements and is tested and calibrated to OE standards.
- Accurate readings across the gap between sensor contact and element, due to its design
- Enhanced sensing functionality that helps reduce emissions and improve reliability and drivability
- Readings are not impacted by temperature changes
- Digital output designed for maximum signal-to-noise ratio
Quick facts
- Part: Delphi SS12463 crankshaft position sensor
- Also called: crank sensor
- Fits: the 2001-2002 Jeep Wrangler 4-cylinder 2.5L, the 2002-2004 Wrangler 6-cylinder 4.0L and other vehicles
- Condition: New
Hard starting, stalling or a lit check engine light can mean the crankshaft position sensor is worn, though the wiring connector or the camshaft position sensor can be behind them too, so trace the cause before replacing the sensor.
Fits
Beyond the Wrangler years and engines named above, this is a crankshaft position sensor for the 1999 Jeep Cherokee 6-cylinder 4.0L and the 1998-2002 Dodge Dakota 4-cylinder 2.5L. The quantity for every one of them is one sensor, which is what this listing holds.
Specifications
- Quantity per vehicle: 1
- Signal output: digital
- Condition: New
In the box
One crankshaft position sensor and one instruction sheet.
Interchange: 5602 7865AB · 6840 7888AA
CSS150 · CSS630 · PC169 · 5S1717
This part cross-references / interchanges with the following part numbers:
CSS150, 5602 7865AB, 6840 7888AA, CSS630, PC169, 5S1717
Frequently Asked Questions
Is this crank sensor right for the 2001-2002 Jeep Wrangler 4-cylinder 2.5L?
Yes. Delphi SS12463 fits the 2001-2002 Jeep Wrangler 4-cylinder 2.5L and the 2002-2004 Wrangler 6-cylinder 4.0L, and each takes one sensor.
Is this a Dodge Dakota crankshaft position sensor for the 1998-2002 model with the 4-cylinder 2.5L?
Yes. Delphi SS12463 fits the 1998-2002 Dodge Dakota 4-cylinder 2.5L, and that truck takes one sensor.
What comes with this Delphi crankshaft position sensor?
The package holds one crankshaft position sensor and one instruction sheet.
Is the signal from this crankshaft position sensor analog or digital?
Delphi SS12463 has a digital output designed for maximum signal-to-noise ratio, and temperature changes do not impact its readings.
Is 5602 7865AB the same part as this crankshaft position sensor?
Yes. 5602 7865AB is one of the numbers this sensor replaces; the others are on the Interchange line at the end of the page.
