Delphi Fuel Pump Module Assembly P/N:FG0952

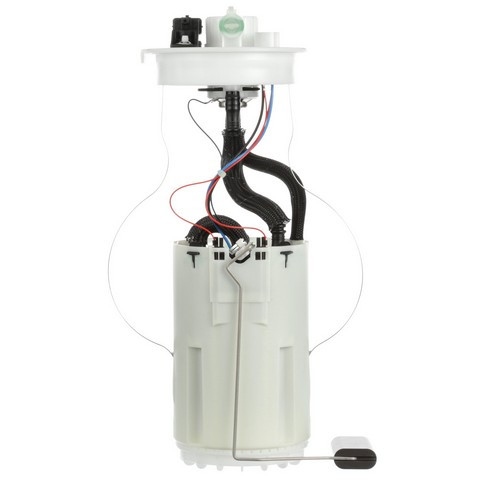

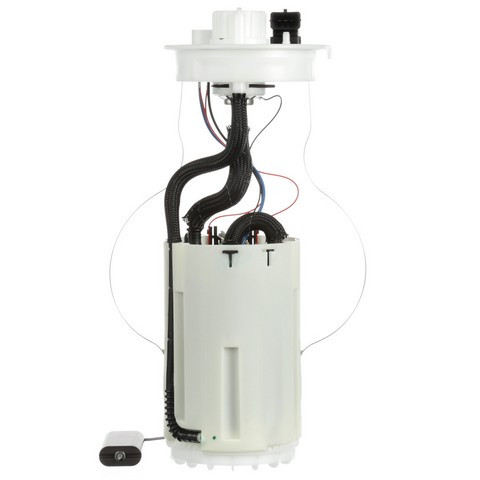

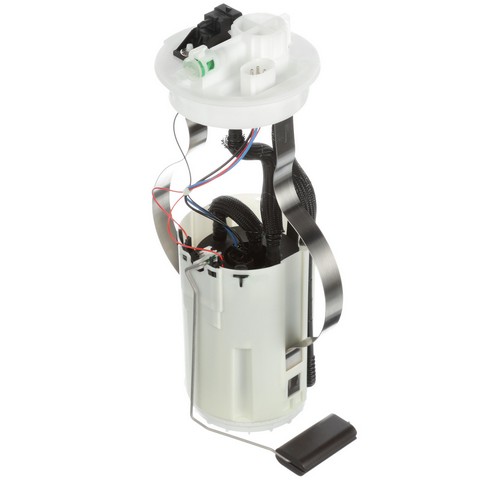

Delphi FG1852 fuel pump module for the 1999-2002 Land Rover Discovery V8 4.0L and the 2003-2004 Discovery V8 4.6L moves gas from the tank to the engine with an electric pump mounted in the tank. This Delphi fuel pump module assembly replaces the pump and float arm together in one unit.
Delphi builds all its fuel pumps to its own OE standards. Hard starting, stalling, a whine from the tank or an unsteady fuel gauge can mean the module is wearing out. Before replacing it, look over the fuel pump fuse and relay with the ignition off, since either may be involved.
It fits the 1999-2002 Land Rover Discovery V8 4.0L and the 2003-2004 Discovery V8 4.6L, and each takes one, mounted in the fuel tank.
Fit and size
Build and materials
One fuel pump module with float arm and one instruction sheet. A lock ring, a gasket or seal and mounting hardware are not included, so plan on new ones, since the old pieces may not be reusable.
Interchange: WFX 101070
4011513 · E8478M · DFG1852 · 69340 · P77227M · A30249 · SP5097M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Will the Delphi fuel pump module fit a 2003-2004 Land Rover Discovery V8 4.6L?
Yes, Delphi FG1852 fits the 2003-2004 Discovery V8 4.6L and the 1999-2002 Land Rover Discovery V8 4.0L, and each takes one.
Does this Delphi module include a lock ring and gasket?
No. Delphi FG1852 comes with the float arm and an instruction sheet, but the lock ring, the gasket or seal and the mounting hardware are not included.
Is this fuel pump assembly an in-tank electric pump?

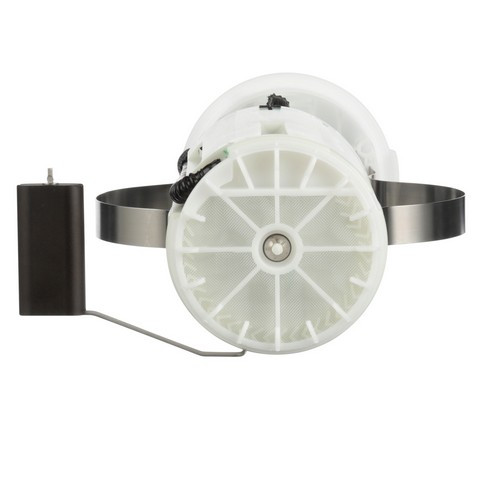

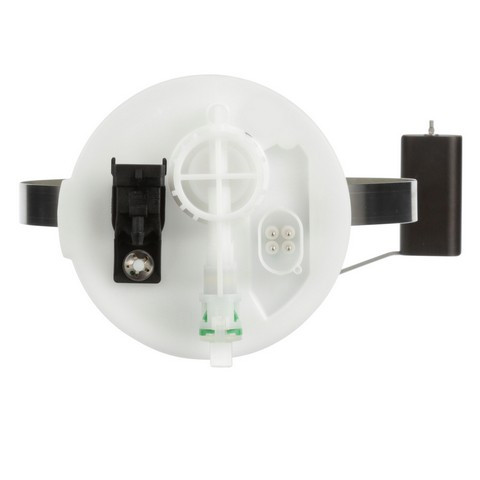

Yes, this module holds an electric pump that sits in the fuel tank and runs on gas. It includes a regulator and an inlet strainer, and the outlet is a female quick connect.
What can a failing Delphi fuel module look like?
Hard starting, stalling, a whine from the tank or an unsteady fuel gauge can be signs of a worn module. A shop can run the pressure and flow tests that need the engine running.
Does the float on Delphi FG1852 read the gas gauge correctly?
Its empty float height and float retention match OE specifications for a correct gas gauge reading. The resistance spec is 245 ohm empty and 15 ohm full.
