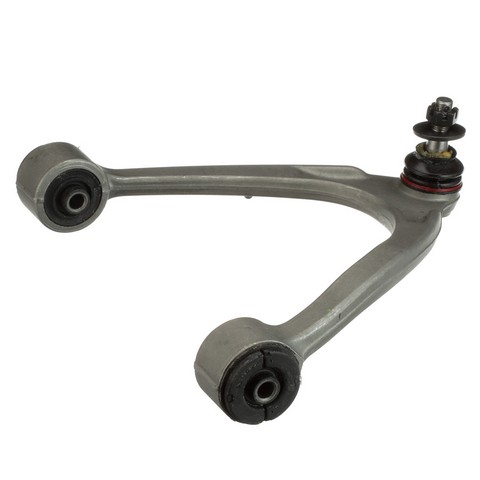

Delphi TC6312 front right upper control arm with ball joint for the 2001-2006 Lexus LS430 V8 4.3L connects the steering knuckle to the body. This Delphi control arm and ball joint assembly is one unit, so the arm and the joint are replaced together. Its materials are checked to match OE specifications.
- Withstands temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on each control arm
- Ball studs machined to micron tolerances for smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6312 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2001-2006 Lexus LS430 V8 4.3L
- Position: Front right upper
- Condition: New
A clunk over bumps, uneven front tire wear or loose steering can point to a worn control arm or ball joint. Those signs alone do not prove this arm is the problem, since a worn sway bar link can produce a similar clunk. If this arm is the cause, this assembly replaces it.
Fits
It fits the 2001-2006 Lexus LS430 V8 4.3L, and the front right upper position takes one arm. This listing is one arm for the front right upper position; the front left arm on the same axle is a separate part, and the two are normally done together.
Specifications
Fit and size
- Position: front right upper
- Quantity for this side: 1
Build and materials
- Type: control arm with ball joint
- Construction: robot-welded
- Ball studs: machined to micron tolerances
- Corrosion protection: anti-corrosion protection on each part
- Condition: new
Interchange: 102-6585 · 521-072 · 48610-59045
CB64078 · CB64078PR · RK641532 · CMS86196 · GS86196
This part cross-references / interchanges with the following part numbers:
102-6585, 521-072, CB64078, CB64078PR, RK641532, CMS86196, GS86196, 48610-59045
Frequently Asked Questions
Is this the 2001-2006 Lexus LS430 V8 4.3L control arm for the front right upper position?
Yes. Delphi TC6312 fits the 2001-2006 Lexus LS430 V8 4.3L in the front right upper position, and that position takes one arm.
How is the Delphi TC6312 control arm tested for heat, cold and salt?
Delphi parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray.
Does this front right upper control arm come with the ball joint?
Yes. This is a control arm with ball joint sold as one assembly, with the ball stud machined to micron tolerances.
What corrosion protection does this front right upper arm have?
Anti-corrosion protection is applied to each part. The arm is also robot-welded for consistent performance and quality.
Does the Delphi TC6312 control arm replace number 48610-59045?
Yes. Delphi TC6312 replaces 48610-59045, one of the other numbers listed on the Interchange line.
