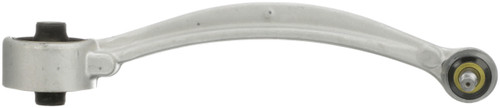

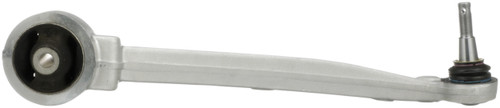

Delphi TC6580 front right lower control arm with ball joint for the 2009-2014 Hyundai Genesis and other vehicles joins the wheel to the chassis through its ball joint. Supplied as a control arm and ball joint assembly, it replaces the arm and its joint as one unit.
- Withstands temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray exposure
- 100% crack detection and ultrasonic flaw detection on every control arm
- Ball studs machined to micron tolerances for smooth joint operation
- Robot-welded control arm for consistent quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6580 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2009-2014 Hyundai Genesis and other vehicles
- Position: Front right lower forward
- Condition: New
A clunk over bumps, uneven tire wear or loose, wandering steering can mean the arm or its ball joint is worn. Those signs alone do not prove this arm is the problem, since a worn tie rod end can also leave the steering loose.
Fits
It is a direct-fit replacement for the 2009-2014 Hyundai Genesis and the 2011-2013 Hyundai Equus, and each takes one arm in this front right lower forward position. This listing is one arm; the left side is a separate part ordered separately, and the pair is normally replaced together.
Specifications
Fit and size
- Position: Front right lower forward
- Quantity per vehicle: 1 for this side
Build and materials
- Type: Control arm with ball joint
- Finish: Anti-corrosion protection on each part
- Condition: New
Interchange: 102-7148 · 52-1744 · 522-354 · 54506-3M000
62251040 · CB60274 · CB60274PR · RK621599 · CMS90186 · GS90186
This part cross-references / interchanges with the following part numbers:
102-7148, 62251040, 52-1744, 522-354, 54506-3M000, CB60274, CB60274PR, RK621599, CMS90186, GS90186
Frequently Asked Questions
Does the Delphi TC6580 control arm fit the 2011-2013 Hyundai Equus?
Yes. Delphi TC6580 is the front right lower forward control arm for the 2011-2013 Hyundai Equus, and it is sold one per listing.
Is the Delphi TC6580 for the left or right side of the 2009-2014 Hyundai Genesis?
It is for the right side, in the front lower forward position. The left side is a separate part, ordered separately.
Does this control arm come with the ball joint?
Yes. Delphi TC6580 is a control arm with the ball joint as one piece, and its ball studs are machined to micron tolerances.
Does this front lower control arm have rust protection?
Yes. Anti-corrosion protection is applied to each arm, and the part is exposed to 720 hours of salt spray in testing.
Is 522-354 the same part as the Delphi TC6580?
Yes. Delphi TC6580 replaces 522-354, which is listed as an interchange number for this arm.
