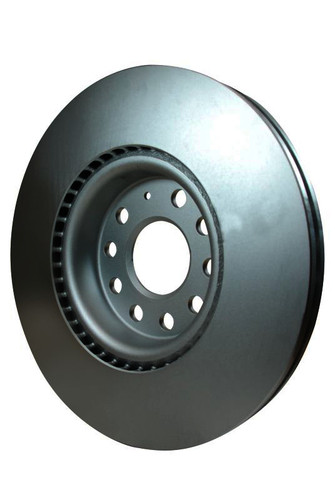

Give your front brakes a fresh surface to clamp against with the HELLA BRAKES Brake Rotor, part number 355122592, an internally vented gray cast iron disc with a full zinc coating for rust protection. It fits many vehicles, among them the 2006-2018 Volkswagen Jetta, 2012-2022 Volkswagen Passat and 2009-2017 Volkswagen Tiguan. See the Buyer's Guide tab for the full list.
HELLA Pagid builds its brake discs to OEM standards from high-grade gray cast iron. This full-cast front disc brake rotor is a direct-fit replacement for the listed applications, with a smooth, non-directional braking surface.
- Heat management: High carbon content and the internally vented design help with heat dissipation for steady braking performance.
- Rust protection: A full zinc coating, with coated disc and hat finishes, helps protect the rotor against rust.
- Noise and vibration control: High carbon content and 'soft' casting materials are intended to absorb sound and resist deformation, helping minimize noise and vibration.
- Quicker prep: The non-oiled surface is designed to go on without a degreasing step, cutting maintenance time and cost.
Specifications: 312 mm (12.28 in) outside diameter; 25 mm (0.98 in) nominal thickness; 22 mm (0.87 in) minimum thickness; 49.7 mm overall height; 112 mm (4.41 in) bolt circle; 65 mm (2.56 in) center hole; 15.3 mm wheel bolt bore; mill balanced; silver color.
Sold individually. The listed applications use two, so replacing both front rotors together as a matched pair is recommended for even, balanced braking. The wheel hub, wheel studs, bearings and ABS tone ring are not included. Installation by qualified personnel is recommended. Country of origin: China.
