Rear Brake Rotor for 2009-2017 Volkswagen Tiguan & More - HELLA 355112142

Be the first to review this product

$55.99

MPN: 355112142

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

DISC BRAKE ROTOR

$55.99

Description

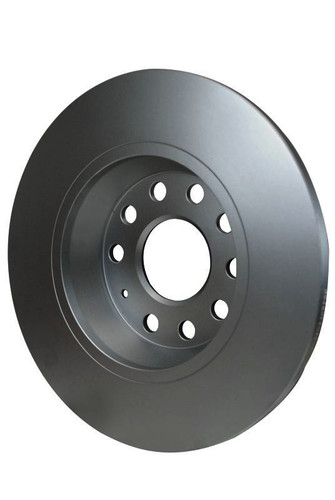

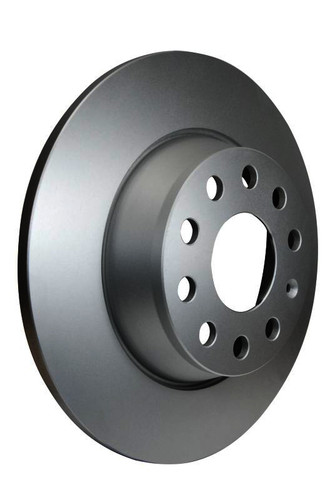

Give your rear brakes a fresh friction surface with the HELLA BRAKES Brake Rotor, part number 355112142. This solid rear rotor is made of gray cast iron with high carbon content, which is intended to help it shed braking heat. It fits many vehicles, among them the 2006-2010 Volkswagen Jetta, 2006-2010 Volkswagen Passat and 2009-2017 Volkswagen Tiguan. It is a direct-fit replacement for the listed applications and a straightforward choice for a 2006-2010 Volkswagen Jetta rotor replacement at the rear axle. See the Buyer's Guide tab for the full list of vehicles.

High carbon content: Aimed at strong braking performance through improved heat dissipation.
Noise and vibration control: The high carbon content and 'soft' casting materials are designed to absorb sound and resist deformation.
Full zinc coating: Provides rust protection, with a coated disc and hat finish.
Non-oiled surface: No degreasing is needed before installation.

Specifications: The rotor has a 282 mm (11.10 in) outside diameter and a 12 mm (0.47 in) nominal thickness, with a 10 mm (0.39 in) minimum thickness. Five stud holes sit on a 112 mm (4.41 in) bolt circle, and the wheel bolt bore is 15.3 mm. The centering diameter is 65 mm (2.56 in) and the overall height is 48.3 mm. It has a smooth, non-directional braking surface and is mill balanced.

What's included: One rotor, sold individually. The ABS tone ring, wheel hub, wheel studs and bearings are not included. The listed applications use two rear rotors, so replacing both sides together as a matched pair is recommended for even, balanced braking. Installation should be done by qualified personnel. Country of origin: China.

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

Frequently Asked Questions

Are these the right 2006-2010 VW Jetta rotors?

Yes. The 355112142 is a direct-fit rear rotor for the 2006-2010 Volkswagen Jetta. It also fits the 2006-2010 Volkswagen Passat and 2009-2017 Volkswagen Tiguan; check the Buyer's Guide tab for your exact vehicle.

What does a disc brake rotor do?

It gives the brake pads a surface to clamp against, turning the wheel's motion into heat to slow the vehicle. This solid rear rotor is gray cast iron with high carbon content.

What are the key specs of the HELLA 355112142?

It has a 282 mm (11.10 in) outside diameter, 12 mm (0.47 in) nominal thickness and 10 mm (0.39 in) minimum thickness. It has five stud holes on a 112 mm bolt circle and a 65 mm centering diameter.

What comes in the box?

One rotor, sold individually. The ABS tone ring, wheel hub, wheel studs and bearings are not included. The listed applications use two, so replacing both sides together is recommended.

What are signs the rear rotors may need replacing?

Common signs are a pulsating brake pedal, grinding or scraping, visible scoring or cracks, and wear at or below the 10 mm minimum thickness. Have the brakes inspected to confirm the cause.
