DISC BRAKE ROTOR

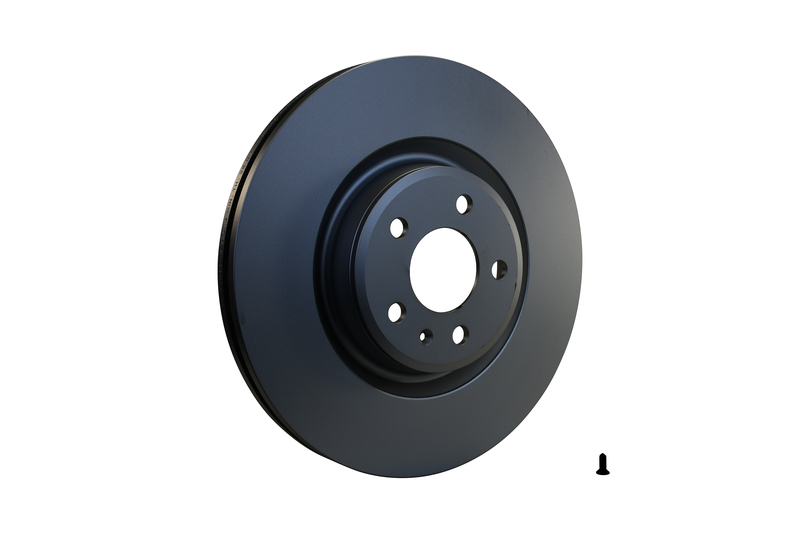

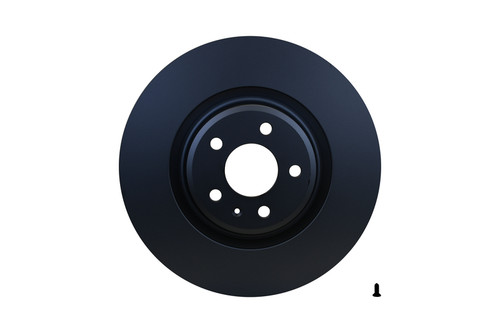

Help deliver firm, quiet front-axle braking with the HELLA Pagid Disc Brake Rotor 355123112, a front internally vented rotor that installs as a direct-fit replacement for the listed applications. It fits many vehicles, among them the 2013-2017 Audi Q5, 2012-2017 Audi S5 and 2012-2016 Audi S4; see the Buyer's Guide tab for the full list.
Cast from high-grade gray cast iron with a smooth, non-directional braking surface, this rotor measures 345 mm outside diameter with a 30 mm nominal thickness (28 mm discard) and mounts via 6 bolt holes on a 112 mm bolt circle. It meets OEM standards and is ECE R90 ready. The ABS tone ring, wheel hub, wheel studs, and wheel bearings are not included. Country of origin: China.
Sold individually, so this listing is for one rotor; the listed applications use two on the front axle, and replacing both sides together as a matched pair is recommended for even, balanced braking.
Will this rotor fit my vehicle?
It's a front direct-fit replacement for many vehicles, among them the 2013-2017 Audi Q5, 2012-2017 Audi S5 and 2012-2016 Audi S4. See the Buyer's Guide tab for the full list.
Is this rotor vented or solid?
It's an internally vented rotor cast from gray cast iron with a smooth, non-directional braking surface.
Are mounting screws included?
Yes, it ships with fixing screws. The ABS tone ring, wheel hub, wheel studs, and wheel bearings are not included.
How many rotors do I need?
The listed applications use two on the front axle. This listing is for one, and replacing both sides together as a matched pair is recommended for even braking.
What are the key dimensions?
345 mm outside diameter, 30 mm nominal thickness with a 28 mm discard thickness, and 6 bolt holes on a 112 mm bolt circle.
