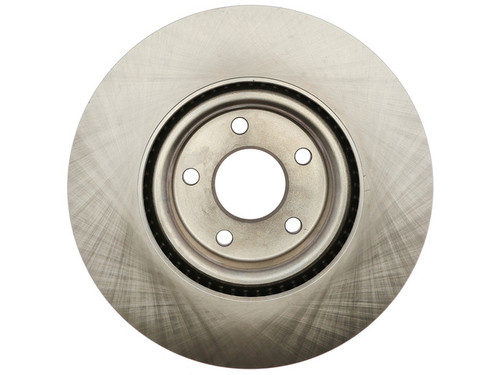

Raybestos Brakes Disc Brake Rotor P/N:682666R

Quiet brake noise and keep smooth, even stops on the front axle with the Raybestos R-Line Disc Brake Rotor 682666R. This vented, full-cast iron front rotor drops in as a direct-fit replacement for the 2021-2025 Ford Bronco Sport [All], 2020-2024 Ford Escape [All], and 2020-2025 Lincoln Corsair [All], where each vehicle uses two front rotors.

Developed from OE samples and cast from G3000-qualified material for OE fit, form, and function, it meets the SAE standard for tensile strength to provide structural integrity and a long service life. Low lateral runout and thickness variation help reduce pedal pulsation and brake noise while supporting extended pad life. Mill-balanced edges and 100% validation minimize thickness variation for reduced vibration and smoother stopping.

• Dimensions: 12.1 in (308.2 mm) outside diameter, 1.1 in (27.0 mm) nominal thickness; discard at 1.0 in (25.0 mm).
• Mounting: 5 stud/lug holes on a 4.3 in (108.0 mm) bolt circle, with a 2.5 in (63.5 mm) center hole.
• Design: conventional, vented, non-directional smooth surface with a rust-resistant coating.
• Note: ABS tone ring and wheel bearings are not included.

Sold individually; replacing both front rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China. Manufacturer part number 682666R.
