Rear Brake Rotor for 2011-2025 GMC Savana 2500 & More - Raybestos 580380R

$122.99

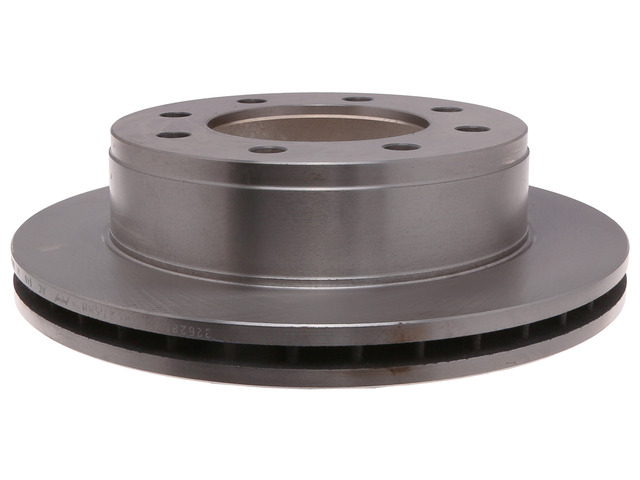

Raybestos Brakes Disc Brake Rotor 580380R

Raybestos Brakes Disc Brake Rotor 580380R - view 2

Raybestos Brakes Disc Brake Rotor 580380R - view 3

Part number: 580380R

UPC: 829352597774

Condition: New

Weight: 4.26 LBS

Item Package Quantity: 1

$122.99

Current Stock: 27

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:580380R

$122.99

Description

Raybestos Brakes 580380R rear brake rotor for the 2011-2025 GMC Savana 2500 and other vehicles gives the brake pads a vented cast iron surface to clamp against.

Raybestos R-Line rotor engineered for everyday driving conditions
Made with G3000-qualified material
Meets the SAE standard for tensile strength
Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and extended pad life
Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

Quick facts

Part: Raybestos Brakes 580380R brake rotor
Also called: disc brake rotor
Fits: 2011-2025 GMC Savana 2500 and other vehicles
Position: Rear
Material: Cast Iron
Condition: New

A pulsing brake pedal, brake noise or visible grooves on a disc brake rotor can mean it is worn. These signs alone don't prove the rotor is at fault, since worn pads, for one, can also make noise.

Fits

Fitment includes the 2011-2025 GMC Savana 2500, the 2005-2025 Chevrolet Express 3500 and the 2005-2025 GMC Savana 3500. Developed from OE samples, the rotor is built for OE fit, form and function. These models take two rear rotors, one per wheel, and this listing is one, so order two and fit them together. If your vehicle isn't named here, look it up in the "Vehicles it fits" section.

Specifications

Fit and size

Position: Rear
Quantity per vehicle: 2
Outside diameter: 329.9 mm (12.989 in)
Bolt circle: 165.1 mm (6.5 in), 8 lug holes
Mounting bolt hole diameter: 16.15 mm (0.636 in)
Overall height: 86.75 mm (3.416 in)
Nominal thickness: 29.15 mm (1.147 in)
Discard thickness: 27.5 mm (1.083 in)

Build and materials

Type: vented, drum-in-hat
Brake surface: non-directional
Material: Cast Iron
Condition: New
Country of origin: China

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Are these Chevy Express 3500 brake rotors for the 2005-2025 model years?

Yes. Raybestos Brakes 580380R is a rear rotor for the 2005-2025 Chevrolet Express 3500, and it also fits the 2011-2025 GMC Savana 2500. For any other vehicle, look up your own in the "Vehicles it fits" section.

At what thickness should the Raybestos Brakes 580380R rotor be replaced?

The discard thickness is 27.5 mm (1.083 in), against a new thickness of 29.15 mm (1.147 in). A rotor measuring at or below the discard figure is due for replacement.

Is this rear rotor vented or solid, and what is it made of?

This rotor is vented, with a drum-in-hat design and a non-directional brake surface. The material is cast iron.

What wear signs can point to replacing a vented cast iron rear rotor?

A pulsing brake pedal, noise when braking or visible grooves can mean the rotor is worn. A measurement under the 27.5 mm discard thickness means it needs replacing.

How many lug holes and what bolt circle does the Raybestos Brakes 580380R have?

Raybestos Brakes 580380R has 8 lug holes on a 165.1 mm (6.5 in) bolt circle. Its outside diameter is 329.9 mm (12.989 in).
