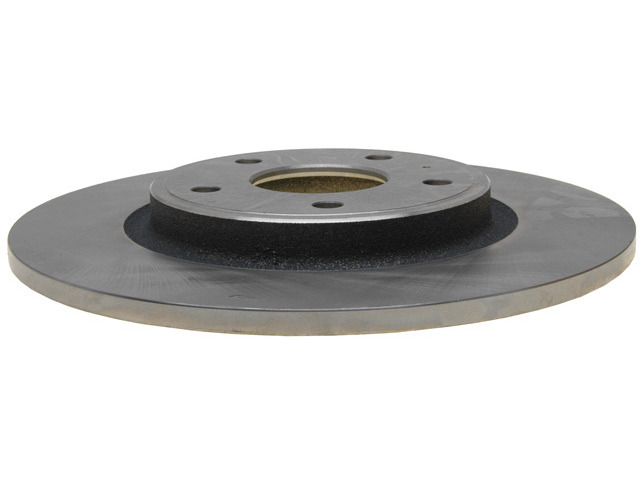

Built for everyday driving, the Raybestos R-Line Brake Rotor 780965R is a solid, cast iron rear rotor designed for dependable braking with OE fit, form and function. It fits many vehicles, among them the 2012-2020 Dodge Grand Caravan, 2012-2020 Dodge Journey and 2012-2015 Ram C/V. See the "Vehicles it fits" section for the full list.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: Meets the SAE standard for tensile strength, which supports structural integrity.
- Low initial lateral runout and thickness variation: Held to small lateral runout and thickness variation. This is designed to help reduce pedal pulsation and brake noise and to extend pad life.
- Mill balanced edges: Mill balanced and 100 percent validated to help minimize thickness variation. This is intended to help reduce vibration for smoother stopping.
Specifications: conventional rotor, not drum-in-hat, with a smooth, non-directional braking surface. Outside diameter is 12.913 in (328 mm) and inside diameter is 8.209 in (208.5 mm). Nominal thickness is 0.472 in (12 mm) and discard thickness is 0.409 in (10.4 mm). Overall height is 1.307 in (33.2 mm) and the center hole is 2.85 in (72.4 mm). It has five 0.566 in (14.4 mm) bolt holes on a 5 in (127 mm) bolt circle. An ABS tone ring is not included.
Each disc brake rotor is sold individually, and the listed applications use two. Replacing both rear rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Frequently Asked Questions
Will this rotor work when I replace the brakes and rotors on a 2014 Dodge Grand Caravan?
Yes. Raybestos 780965R is listed as a rear rotor for the 2012-2020 Dodge Grand Caravan, which includes the 2014 model year. The "Vehicles it fits" section shows every listed application.
What other vehicles use this rear rotor?
Listed applications include the 2012-2020 Dodge Journey and the 2012-2015 Ram C/V. The "Vehicles it fits" section has the full list.
What are the nominal and discard thicknesses?
Nominal thickness is 0.472 in (12 mm). The rotor should be replaced once it wears to the 0.409 in (10.4 mm) discard thickness.
What comes in the box, and do I need two?
You get one rotor. An ABS tone ring is not included. The listed applications use two, so replacing both rear rotors together as a pair is recommended for even braking.
What are signs my rear rotors may need replacing?
Signs include pedal pulsation, vibration or noise when braking, visible scoring, or wear to the 0.409 in discard thickness. Diagnose the cause before replacing parts.
