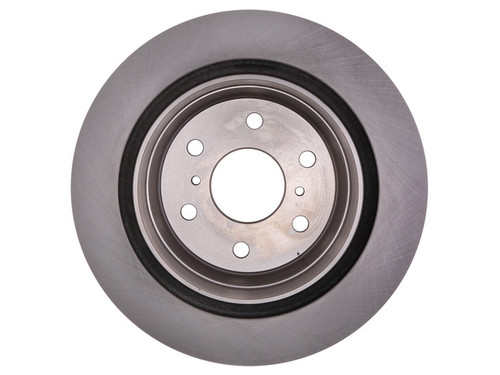

Raybestos Brakes Disc Brake Rotor P/N:580422R

Help keep every stop smooth and steady with the Raybestos R-Line Brake Rotor 580422R. This vented, cast-iron rear rotor is engineered for everyday driving and offers OE fit, form and function. It fits many vehicles, among them the 2007-2018 Chevrolet Silverado 1500, the 2007-2018 GMC Sierra 1500 and the 2007-2020 Chevrolet Tahoe, all engines. See the Buyer's Guide tab for the full list. For anyone replacing a worn Silverado 1500 brake rotor, it is a direct-fit replacement for the listed applications.

• OE fit, form and function: Raybestos developed it from OE samples and made it with G3000-qualified material for dependable braking.
• SAE standard: It meets the SAE standard for tensile strength, which supports structural integrity.
• Low initial lateral runout and thickness variation: It is designed to help reduce pedal pulsation and brake noise and to extend pad life.
• Mill balanced edges: Each rotor is mill balanced and 100 percent validated. This helps minimize thickness variation and vibration for smoother stopping.

Specifications:

• Material: cast iron
• Type: vented, drum-in-hat rotor
• Brake surface: non-directional, smooth
• Outside diameter: 13.58 in (344.95 mm)
• Nominal thickness: 0.79 in (20.05 mm)
• Discard thickness: 0.73 in (18.55 mm)
• Overall height: 3.35 in (85.1 mm)
• Center hole diameter: 3.1 in (78.75 mm)
• Inside diameter: 9.831 in (249.7 mm)
• Bolt holes: six 0.645 in (16 mm) mounting bolt holes on a 5.5 in (139.7 mm) bolt circle

The rotor is sold individually, and the listed applications use two. Replacing both rear rotors together as a matched pair is recommended for even, balanced braking. Country of origin: China.
