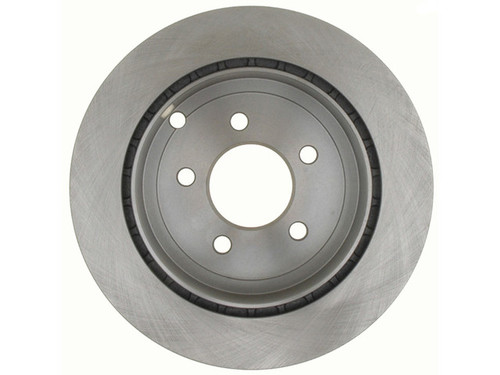

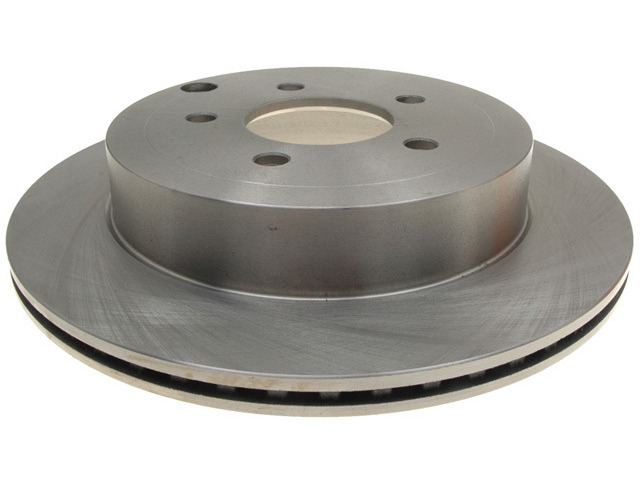

Keep rear braking smooth and dependable with the Raybestos R-Line Brake Rotor 680546R, a direct-fit rear replacement for the 2007-2010 Ford Edge and 2007-2010 Lincoln MKX (all engines). Raybestos engineers its R-Line rotors and drums for everyday driving conditions.
This cast iron, vented rotor is a drum-in-hat type, so the hat also provides the parking brake drum surface. It has a non-directional braking surface, and the ABS tone ring is not included.
The listed applications use two rear rotors. This rotor is sold individually, and replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
What does this disc brake rotor do?
The rear brake pads clamp against it to slow the wheel. Because it is a drum-in-hat type, the hat also provides the drum surface for the parking brake.
Is this the right 2007-2010 Ford Edge rotor, and does it fit the 2007-2010 Lincoln MKX?
It is a direct-fit rear rotor for the 2007-2010 Ford Edge and 2007-2010 Lincoln MKX with all engines. Check the Buyer's Guide tab to confirm your vehicle.
What are the rotor's key measurements?
It has an 11.882 in (301.8 mm) outside diameter, 0.709 in (18 mm) nominal thickness and 0.63 in (16 mm) discard thickness, with 5 bolt holes on a 4.5 in (114.3 mm) circle.
Should I replace both rear rotors at the same time?
The listed applications use two rear rotors. This one is sold individually, and replacing both sides together is recommended for even, balanced braking.
What are signs a brake rotor may need replacing?
Signs include pedal pulsation, vibration when stopping, grinding or squealing, deep scoring, or wear down to the 0.63 in (16 mm) discard thickness.
