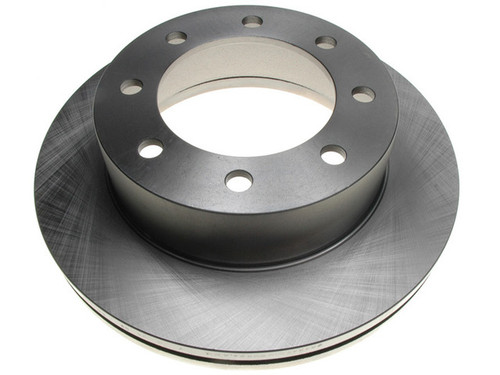

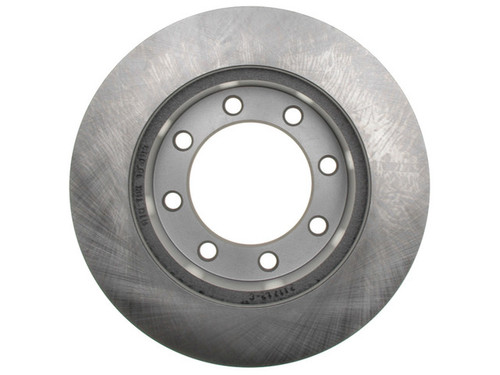

Put a smooth, low-runout braking surface back on the front axle of your heavy-duty Ford with the Raybestos R-Line Disc Brake Rotor 680339R. This vented, non-directional cast-iron rotor drops in as a direct-fit front replacement for the 2005-2012 Ford F-350 Super Duty and 2010-2012 Ford F-450 Super Duty (All engines).
Specs: 13.66 in (346.95 mm) outside diameter, 8 mounting/lug bolt holes, conventional (non drum-in-hat) design, 1.495 in nominal thickness with a 1.433 in discard thickness, and no ABS tone ring included. Sold individually; for even, balanced braking it is best to replace the front rotors as a matched pair. Country of origin: China.
Does this rotor fit my truck?
It is a direct-fit front rotor for the 2005-2012 Ford F-350 Super Duty and 2010-2012 Ford F-450 Super Duty (All engines). Check the Buyer's Guide tab to confirm your vehicle.
Is this rotor vented or solid?
It is a vented rotor with a non-directional braking surface, so a single part number can be used on either side of the axle.
Do I need to buy two?
This listing is for one rotor. The front axle uses two, and replacing both sides together as a matched pair is recommended for even, balanced braking.
Is an ABS tone ring included?
No. Per the catalog, this rotor does not include an ABS tone ring. Transfer or replace the tone ring as directed by the vehicle service procedure if your application uses one.
What material is this rotor made of?
It is cast iron, produced from G3000-qualified material and developed from OE samples for OE fit, form and function.
