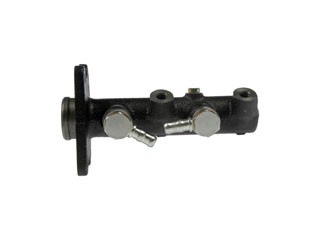

Dorman M39669 brake master cylinder for the 1984-1985 Toyota Van turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is precision-engineered to follow the design, function and performance of the original master cylinder.
- Part of the Dorman First Stop line
- Cast iron housing built to match the casting material of the original part for similar performance
- All rubber components are EPDM compound, which resists glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M39669 brake master cylinder
- Fits: 1984-1985 Toyota Van
- Material: Cast iron
- Condition: New
A brake pedal that sinks or feels soft, or brake fluid leaking around the cylinder, can mean the master cylinder is wearing out. These signs alone do not prove the master cylinder is the problem, since a leaking brake line can also give a soft pedal. Have brake problems looked at promptly.
Fits
This master cylinder is a direct-fit replacement for the 1984-1985 Toyota Van, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.938 in
- Number of outlets: 2
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Cast iron
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder. The reservoir, sensor and mounting hardware are not included, so plan on new fasteners, as the old ones may not be reusable.
Interchange: 83-22800 · 100-1673 · M-56800 · 072-8416 · 13-2043 · 11-2043 · 130.44800 · 355-76149
18M376 · M900582 · 12043 · MC507880 · M52043 · 4720128060 · F108555 · MC108555
This part cross-references / interchanges with the following part numbers:
18M376, 83-22800, M900582, 100-1673, M-56800, 072-8416, 12043, 13-2043, 11-2043, 130.44800, MC507880, 355-76149, M52043, 4720128060, F108555, MC108555
Frequently Asked Questions
Will the M39669 fit the 1984-1985 Toyota Van?
Yes, Dorman M39669 is listed for the 1984-1985 Toyota Van. This listing is one master cylinder.
Does this Dorman master cylinder come with the reservoir?
No. Dorman M39669 is the master cylinder only; the reservoir, sensor and mounting hardware are not included.
What bore size and outlet thread does this brake master cylinder have?
The bore diameter is 0.938 in. It has two outlets with an M10 x 1.0 thread and a 1 mm pitch.
Can a soft pedal mean a brake master cylinder is worn?
Yes, a pedal that sinks or feels soft, or fluid leaking at the cylinder, can mean it is worn. Have the brakes checked promptly.
Are the rubber components in this master cylinder made for glycol-based brake fluid?
Yes. Dorman M39669 uses EPDM compound for all its rubber components, which resists glycol-based brake fluid.
