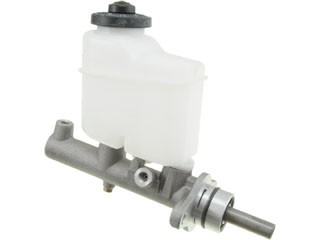

Dorman M630129 brake master cylinder for the 2002-2006 Toyota Camry and other vehicles turns pedal force into hydraulic pressure for the brakes. The housing is constructed to match the casting material of the original part.
- Dorman First Stop line brake master cylinder
- Aluminum cylinder housing
- Rubber components made of EPDM compound for resistance to glycol-based brake fluid
- Made entirely of new materials
- Made to meet SAE International standards
Quick facts
- Part: Dorman M630129 brake master cylinder
- Fits: 2002-2006 Toyota Camry and other vehicles
- Material: Aluminum
- Condition: New
A brake pedal that sinks toward the floor or feels soft, or fluid showing at the cylinder, can mean the brake master cylinder is worn, though a leaking brake line or a worn caliper can also be behind those signs, so find the cause first.
Fits
This brake master cylinder for the 2002-2006 Toyota Camry also fits the 2004-2008 Toyota Solara, and each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.875 in
- Number of outlets: 2
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Condition: New
- Reservoir: included
- Sensor: included
- Country of origin: Taiwan
In the box
One brake master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.
Interchange: 100-1548 · 13-2965 · 11-2965 · 130.44032 · 355-76017
13841 · MC511600 · NM55231 · MC390754 · 4720106260 · 4720133350 · F140091 · MC140091
This part cross-references / interchanges with the following part numbers:
100-1548, 13841, 13-2965, 11-2965, 130.44032, MC511600, 355-76017, NM55231, MC390754, 4720106260, 4720133350, F140091, MC140091
Frequently Asked Questions
Is this Dorman brake master cylinder the right one for the 2004-2008 Toyota Solara?
Yes. Dorman M630129 fits the 2004-2008 Toyota Solara and the 2002-2006 Toyota Camry, and each takes one.
What comes with the Dorman master cylinder?
The Dorman M630129 comes as one brake master cylinder with its reservoir and sensor. Mounting hardware is not included.
What bore size and outlet thread does this brake master cylinder have?
The bore diameter is 0.875 in. The part has two outlets, both threaded M10 x 1.0, with a 1 mm thread pitch on the primary outlet.
What are the rubber parts in this brake master cylinder made of?
The rubber components are an EPDM compound that resists glycol-based brake fluid. The housing is aluminum.
Does Dorman M630129 replace the 4720106260 brake master cylinder?
Yes. 4720106260 is one of the numbers this part replaces, along with 4720133350 and 13-2965.
