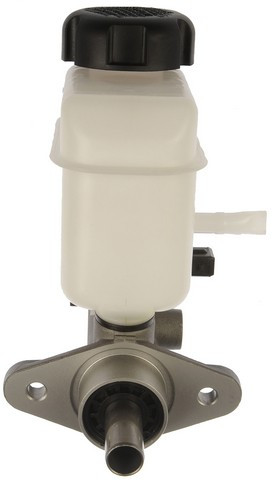

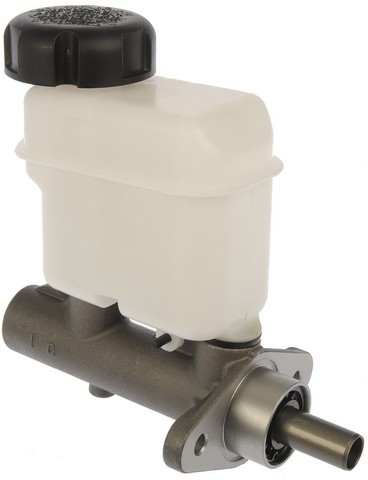

Dorman - First Stop Brake Master Cylinder M630456

Dorman - First Stop Brake Master Cylinder M630456 - view 2

Dorman - First Stop Brake Master Cylinder M630456 - view 3

Dorman - First Stop Brake Master Cylinder M630456 - view 4

Dorman - First Stop Brake Master Cylinder P/N:M630456

Be the first to review this product

$137.99

MPN: M630456

UPC: 885484048041

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Dorman - First Stop Brake Master Cylinder P/N:M630456

$137.99

Description

Send hydraulic pressure to your brakes with the Dorman First Stop M630456, a new Hyundai Sonata master cylinder built as a direct-fit replacement for the 2006-2010 Hyundai Sonata and the 2006-2013 Hyundai Azera (all engines). The master cylinder converts force on the brake pedal into hydraulic pressure and sends it to the brake lines through its two outlets.

Dorman precision-engineered this unit to match the design, function and performance of the original master cylinder. It is built from new, high-quality materials for a safe, durable replacement.

Precise replacement: The aluminum cylinder housing is made to match the original part's material for similar performance.
Durable design: Every rubber component uses a high-quality EPDM compound that resists glycol-based brake fluid.
100% new: Made entirely of new materials for quality and safety.
Strict specifications: Built to meet rigorous SAE International standards.
Specifications: 1-inch bore, two outlets, M12 x 1.0 secondary outlet thread and 1 mm primary outlet thread pitch. The reservoir and sensor are included.

A soft or sinking brake pedal or fluid seeping from around the unit are signs this part may need replacing. If a worn master cylinder is the cause, this unit replaces it. Mounting hardware is not included, so consult the vehicle service information for the correct fasteners and whether they may be reused. Country of origin: China.

Interchange: 100-3065 · 13-3258 · 13-3258R · 11-3258 · 11-4620 · 130.51039 · 355-03037
585103K300 · NM55366 · MC391117 · F142428 · MC142428 · 1003065 · 133258 · 133258R · 113258 · 114620 · 13051039 · 35503037

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

100-3065, 13-3258, 13-3258R, 11-3258, 11-4620, 130.51039, 355-03037, 585103K300, NM55366, MC391117, F142428, MC142428

Frequently Asked Questions

Is this the right master cylinder for a 2006 Hyundai Sonata?

Yes. M630456 is listed for the 2006-2010 Hyundai Sonata and the 2006-2013 Hyundai Azera with all engines. Check the Buyer's Guide tab to confirm your vehicle.

What comes in the box?

The master cylinder, with the reservoir and sensor included. Mounting hardware is not included, so consult the vehicle service information for the correct fasteners and whether they may be reused.

What are the key specifications?

It has an aluminum housing, a 1-inch bore and two outlets, with an M12 x 1.0 secondary outlet thread. Its rubber components use an EPDM compound that resists glycol-based brake fluid.

What signs suggest a master cylinder may need replacing?

A soft or sinking brake pedal or fluid leaking around the unit can be signs. Other brake parts can cause these symptoms too, so diagnose the cause before replacing the master cylinder.

Does it need to be bled when installed?

Yes. A master cylinder is normally bench-bled before installation, and the brake system is bled afterward. Follow the vehicle service procedure and use the brake fluid it specifies.
