Brake Master Cylinder for 2007-2009 Chevrolet Equinox & More - Dorman M630506

$119.99

Vehicles this part fits

    Part number: M630506
    UPC: 885484083431
    Condition: New
    Weight: 1.30 LBS
    Item Package Quantity: 1
    $119.99
    Adding to cart… The item has been added

    Have questions?

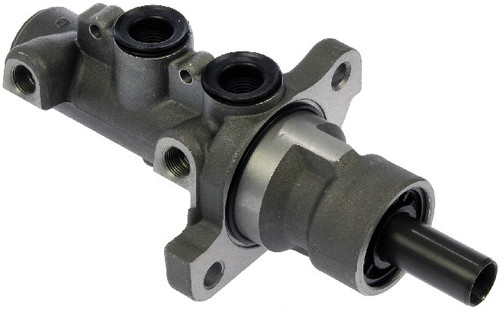

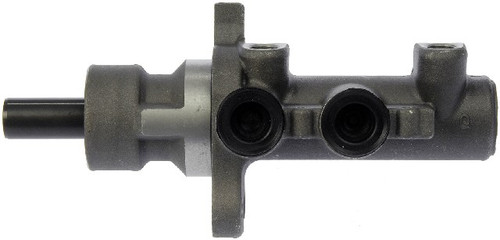

    Dorman - First Stop Brake Master Cylinder P/N:M630506
    Dorman - First Stop Brake Master Cylinder P/N:M630506
    $119.99
    $119.99

    Dorman M630506 brake master cylinder for the 2007-2009 Chevrolet Equinox and other vehicles turns pedal force into hydraulic pressure for the brakes. It replaces a master cylinder that has worn or started to leak.

    • Part of the Dorman First Stop line
    • Aluminum cylinder housing made to match the casting material of the original part
    • All rubber components are EPDM compound, resistant to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards

    Quick facts

    • Part: Dorman M630506 brake master cylinder
    • Fits: 2007-2009 Chevrolet Equinox and other vehicles
    • Material: Aluminum
    • Condition: New

    A soft or sinking brake pedal, or fluid around the cylinder, can mean this master cylinder is worn. A leaking brake hose or a worn caliper can produce similar signs, so track down the actual cause before you swap the part. The 2007-2009 Chevrolet Equinox takes one.

    Fits

    This brake master cylinder is a direct-fit replacement for the 2007-2009 Chevrolet Equinox, the 2012-2015 Chevrolet Captiva Sport and the 2008-2010 Saturn Vue. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 1 in
    • Number of outlets: 2
    • Rearward outlet size: M12 x 1.0
    • Secondary outlet thread diameter: M12 x 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Condition: New
    • Country of origin: China

    In the box

    One brake master cylinder. The reservoir, sensor and mounting hardware are not included, so plan on new mounting hardware, as the old pieces may not be reusable.

    Interchange: 175-0634 · 100-2362 · 13-3306 · 10-3306 · 130.62150 · 131.62150 · 355-47103
    19151463 · NM4186 · MC391145 · F144348 · MC144348

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    175-0634, 100-2362, 13-3306, 10-3306, 130.62150, 131.62150, 355-47103, 19151463, NM4186, MC391145, F144348, MC144348

    Frequently Asked Questions

    Is the Dorman M630506 the right master cylinder for a 2008-2010 Saturn Vue?

    Yes. Dorman M630506 fits the 2008-2010 Saturn Vue, and that vehicle takes one.

    Does the M630506 master cylinder come with a reservoir or sensor?

    No. Dorman M630506 is the master cylinder only. The reservoir, sensor and mounting hardware are not included.

    What is the bore diameter of this brake master cylinder?

    The bore is 1 inch, and the housing is aluminum. It has two outlets, with a rearward outlet size of M12 x 1.0.

    Can a soft pedal mean my brake master cylinder is worn?

    Yes, a soft or sinking pedal and fluid around the cylinder can point to a worn master cylinder. A shop can test the brake system, and brakes should be looked at promptly.

    What are the rubber components in the Dorman M630506 master cylinder made of?

    All rubber components in Dorman M630506 are made of EPDM compound, which resists glycol-based brake fluid.
