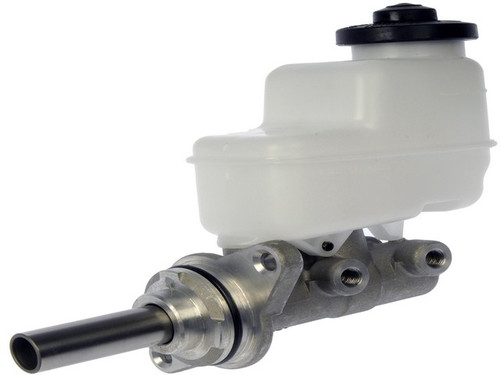

Dorman - First Stop Brake Master Cylinder P/N:M630826
Dorman M630561 brake master cylinder for the 2006-2012 Toyota RAV4 turns pedal force into hydraulic pressure for the brakes. It is made to match the design, function and performance of the original master cylinder, down to the casting material of its housing.
A soft or sinking brake pedal, fluid around the cylinder or a brake warning light can mean a master cylinder is wearing out. A leaking brake hose, a sticking caliper or a failing brake booster can produce some of those same symptoms, so find the cause before buying a replacement.
This master cylinder fits the 2006-2012 Toyota RAV4 and the 2014-2019 Toyota RAV4, and each takes one. This listing is one master cylinder.
Fit and size
Build and materials

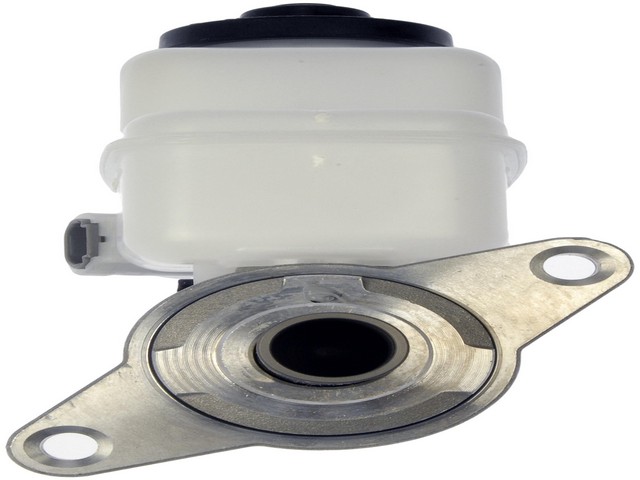

One master cylinder with its reservoir and sensor. Mounting hardware is not included, and the old hardware may not be reusable, so plan on new hardware.
Interchange: 100-1713 · 13-3425 · 11-3425 · 130.44919 · 355-76183
NM55423 · MC391299 · 4702842030 · 472010R070 · 4720142340 · F143494 · MC143494
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Dorman M630561 fit the 2006-2012 Toyota RAV4 and the 2014-2019 Toyota RAV4?
Yes. The Dorman M630561 master cylinder fits both the 2006-2012 and the 2014-2019 Toyota RAV4, and each takes one.
Does the M630561 master cylinder come with the reservoir and sensor?
Yes. The Dorman M630561 includes the reservoir and the sensor. Mounting hardware is not included, so get new hardware separately.
What thread size are the outlets on this brake master cylinder?
The rearward and secondary outlets are both M10 x 1.0, and the primary outlet thread pitch is 1 mm. The cylinder bore measures 0.813 inch.
Is the rubber in this master cylinder made for glycol-based brake fluid?
Yes. All rubber components are made of an EPDM compound for resistance to glycol-based brake fluid.
Is the Dorman M630561 built from new materials?
Yes. The Dorman M630561 is made entirely of new materials and is made to meet SAE International standards.
