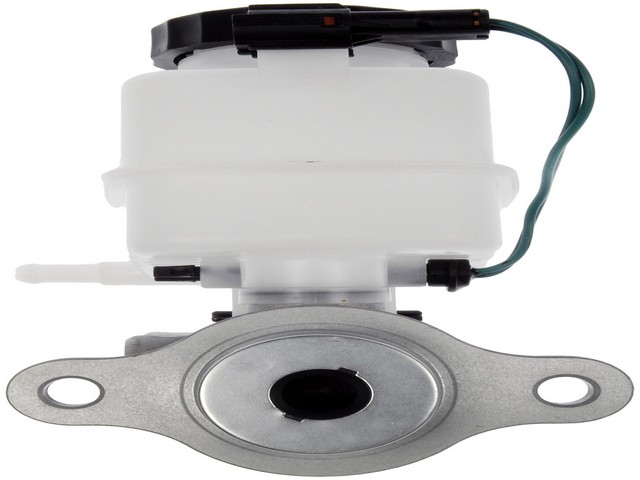

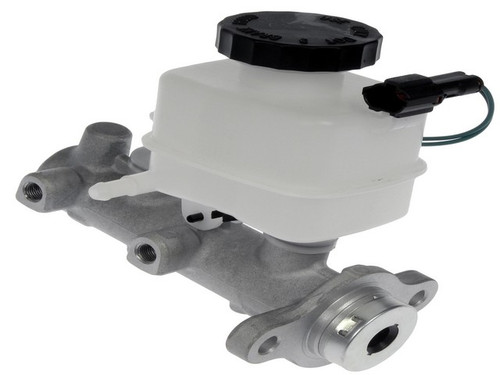

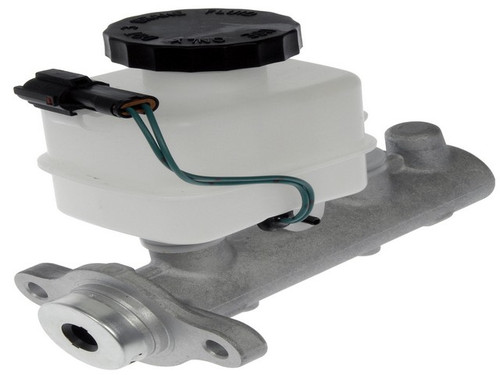

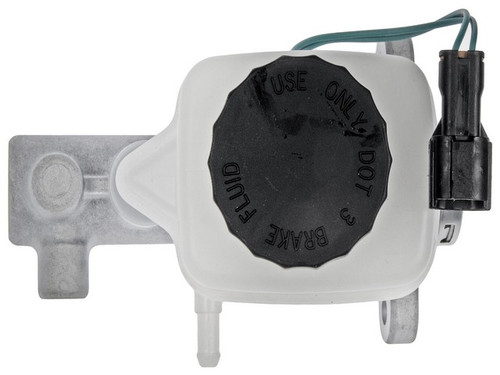

Dorman M630566 brake master cylinder for the 2006-2008 Suzuki Forenza and other vehicles turns pedal force into hydraulic pressure for the brakes. The housing is built to match the casting material of the original part, for similar performance.
- Dorman First Stop line, made entirely of new materials
- Aluminum master cylinder body
- EPDM rubber components that resist glycol-based brake fluid
- Made to meet rigorous SAE International standards
- Reservoir and sensor included
Quick facts
- Part: Dorman M630566 brake master cylinder
- Fits: 2006-2008 Suzuki Forenza and other vehicles
- Material: Aluminum
- Condition: New
A soft or sinking pedal, brake fluid on the master cylinder body or a brake warning light can mean the master cylinder is worn. A low pedal can also come from a leak at a line or caliper, so with the engine off, look at the fluid level and for wet spots before replacing it. If the pedal feels soft, have the brakes inspected promptly.
Fits
This master cylinder is a direct-fit replacement for the 2006-2008 Suzuki Forenza and the 2006-2008 Suzuki Reno. Each car needs one, and this listing is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of outlets: 2
- Bore diameter: 0.938 in
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Reservoir: included
- Sensor: included
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners.
Interchange: 100-1965 · 13-3315 · 11-3315 · 130.49014 · 355-01026
NM55356 · NM55357 · MC391217 · 5120085Z00 · 5120085Z10 · R135007
This part cross-references / interchanges with the following part numbers:
100-1965, 13-3315, 11-3315, 130.49014, 355-01026, NM55356, NM55357, MC391217, 5120085Z00, 5120085Z10, R135007
Frequently Asked Questions
Is this Dorman brake master cylinder the right one for a 2006-2008 Suzuki Reno?
Yes. Dorman M630566 is a direct-fit replacement for the 2006-2008 Suzuki Reno and the 2006-2008 Suzuki Forenza.
Does this master cylinder come with a reservoir and sensor?
Yes. Dorman M630566 includes the reservoir and the sensor. Mounting hardware is not included.
What size are the outlets on this master cylinder?
The master cylinder has 2 outlets. The rearward outlet size and the secondary outlet thread diameter are M10 x 1.0, and the primary outlet thread pitch is 1 mm.
What is this brake master cylinder made of?
The master cylinder material is aluminum. All its rubber components are EPDM compound that resists glycol-based brake fluid.
Is the Dorman M630566 made to a published standard?
Yes. Dorman M630566 is made to meet rigorous SAE International standards and is built entirely of new materials.
