Brake Master Cylinder for 2009 Chevrolet Epica & More - Dorman M630636

$206.99

Vehicles this part fits

    Part number: M630636
    UPC: 885484092310
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $206.99
    Adding to cart… The item has been added

    Have questions?

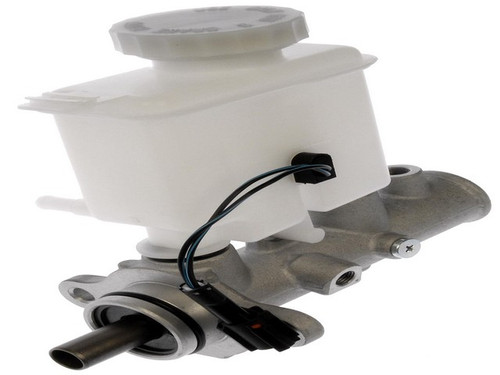

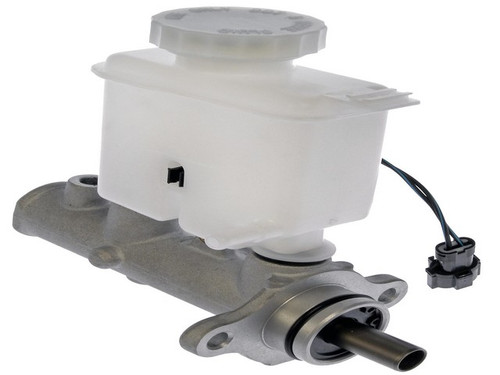

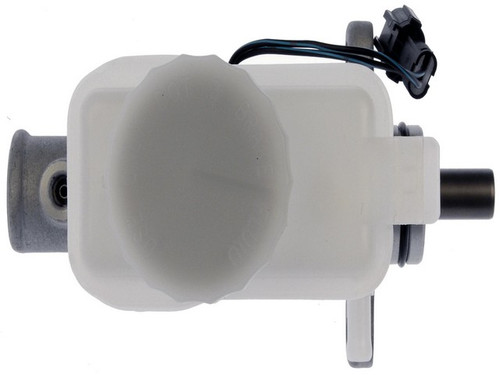

    Dorman - First Stop Brake Master Cylinder P/N:M630636
    Dorman - First Stop Brake Master Cylinder P/N:M630636
    $206.99
    $206.99

    Dorman M630636 brake master cylinder for the 2009 Chevrolet Epica and other vehicles turns pedal force into hydraulic pressure for the brakes. The cylinder housing is built to match the casting material of the original part for similar performance.

    • Dorman First Stop line master cylinder with an aluminum housing and a 1 in bore
    • All rubber components are EPDM compound for resistance to glycol-based brake fluid
    • Master cylinder made entirely of new materials
    • Master cylinder made to meet rigorous SAE International standards

    Quick facts

    • Part: Dorman M630636 brake master cylinder
    • Fits: 2009 Chevrolet Epica and other vehicles
    • Material: Aluminum
    • Condition: New

    A brake pedal that sinks, feels soft, or a fluid leak around the cylinder can mean the master cylinder is wearing out. Before you replace it, rule out other sources of the same signs, such as a leaking brake line, a caliper or air in the system, because those need different repairs. If a failed master cylinder is the cause, this one replaces it.

    Fits

    It is a direct-fit replacement for the 2006 Chevrolet Epica, the 2009 Chevrolet Epica and the 2004-2006 Suzuki Verona.

    Specifications

    Fit and size

    • Bore diameter: 1 in
    • Number of outlets: 2
    • Rearward outlet size: M10 x 1.0
    • Secondary outlet thread diameter: M10 x 1.0
    • Primary outlet thread pitch: 1 mm
    • Quantity per vehicle: 1

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM compound
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One master cylinder with its reservoir and sensor. This listing holds one master cylinder, and one is all these vehicles need. Mounting hardware is not included, so plan on new bolts, because the old ones may not be reusable.

    Interchange: 100-3830 · 11-3352 · 11-3931 · 130.49008 · 130.49016 · 355-01027
    NM55353 · MC391106 · 5110086Z10 · 5110086Z11 · F143208 · MC143208

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-3830, 11-3352, 11-3931, 130.49008, 130.49016, 355-01027, NM55353, MC391106, 5110086Z10, 5110086Z11, F143208, MC143208

    Frequently Asked Questions

    Is the Dorman M630636 master cylinder a fit for the 2004-2006 Suzuki Verona?

    Yes. Dorman M630636 is a direct-fit replacement for the 2004-2006 Suzuki Verona.

    What material is this Dorman brake master cylinder made of?

    Dorman M630636 has an aluminum housing with a 1 in bore. Its rubber components are EPDM compound, which resists glycol-based brake fluid.

    Does the Dorman master cylinder come with a reservoir?

    Yes. The master cylinder comes with its reservoir and sensor, but mounting hardware is not included.

    What thread size are the outlets on the Dorman M630636?

    The rearward outlet is M10 x 1.0, the secondary outlet thread diameter is M10 x 1.0 and the primary outlet thread pitch is 1 mm. This master cylinder has two outlets.

    Can a sinking brake pedal mean the master cylinder is worn?

    Yes, it can, though other brake parts can cause the same feel. Have a shop test the system promptly, and do not keep driving on brakes you suspect are failing.
