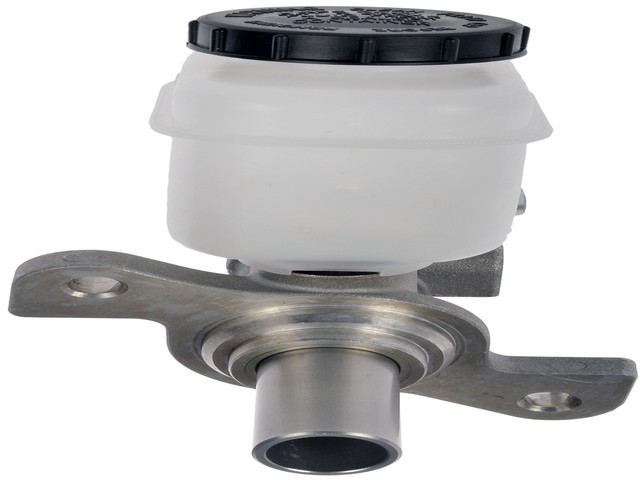

Brake Master Cylinder for 2010-2014 Subaru Outback & More - Dorman M630802

$159.99

Vehicles this part fits

    Part number: M630802
    UPC: 885484253155
    Condition: New
    Weight: 1.73 LBS
    Item Package Quantity: 1
    $159.99
    Adding to cart… The item has been added

    Have questions?

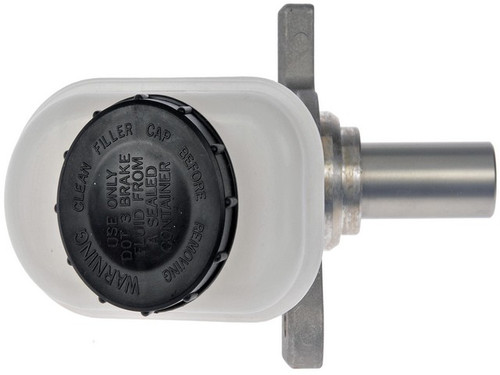

    Dorman - First Stop Brake Master Cylinder P/N:M630802
    Dorman - First Stop Brake Master Cylinder P/N:M630802
    $159.99
    $159.99

    Dorman M630802 brake master cylinder for the 2010-2014 Subaru Outback and other vehicles turns pedal force into hydraulic pressure for the brakes.

    • Aluminum cylinder housing
    • All rubber components are made of EPDM compound for resistance to glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards
    • Reservoir and sensor included with the cylinder

    Quick facts

    • Part: Dorman M630802 brake master cylinder
    • Fits: 2010-2014 Subaru Outback and other vehicles
    • Material: Aluminum
    • Condition: New

    A leaking brake line or caliper, worn pads or air in the lines can all be behind a soft or sinking pedal, and so can a worn master cylinder, so find the cause before you buy. Fluid seeping near the cylinder is another sign of wear. If a failed master cylinder is the cause, this one replaces it.

    Fits

    This brake master cylinder is a direct-fit replacement for the 2010-2014 Subaru Outback and the 2010-2015 Subaru Legacy. The cylinder housing is constructed to match the casting material of the original part.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.938 in
    • Number of outlets: 2
    • Rearward outlet size: M12 X 1.0
    • Secondary outlet thread diameter: M12 X 1.0
    • Primary outlet thread pitch: 1 mm

    Build and materials

    • Material: Aluminum
    • Reservoir: single, included
    • Sensor: included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One brake master cylinder with its reservoir and sensor. This listing holds one master cylinder, which is the quantity a vehicle takes. Mounting hardware is not included, so plan on new hardware rather than reusing the old.

    Interchange: 100-2945 · 13-4401 · 11-4401 · 130.47032 · 355-13028
    NM55470 · MC391418 · 26401AJ000 · 26449AJ000

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-2945, 13-4401, 11-4401, 130.47032, 355-13028, NM55470, MC391418, 26401AJ000, 26449AJ000

    Frequently Asked Questions

    Is this the master cylinder for the 2010-2015 Subaru Legacy?

    Yes. Dorman M630802 fits the 2010-2015 Subaru Legacy, and it also fits the 2010-2014 Subaru Outback.

    Does the Dorman M630802 master cylinder come with its reservoir?

    Yes. Dorman M630802 includes the reservoir and sensor; mounting hardware is not included, so plan on new hardware.

    What size are the outlet threads on this brake master cylinder?

    The rearward outlet is M12 X 1.0 and the secondary outlet thread diameter is M12 X 1.0, with a 1 mm pitch on the primary outlet. The bore diameter is 0.938 in.

    Are the rubber parts in this master cylinder made of EPDM?

    Yes. Every rubber component is EPDM compound, which resists glycol-based brake fluid.

    Is the Dorman M630802 made to SAE standards?

    Yes. Dorman M630802 is built to meet rigorous SAE International standards, and all of its materials are new.
