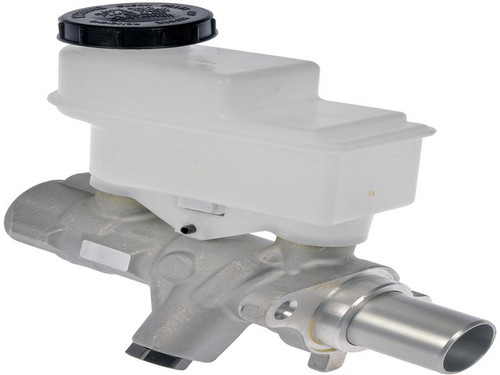

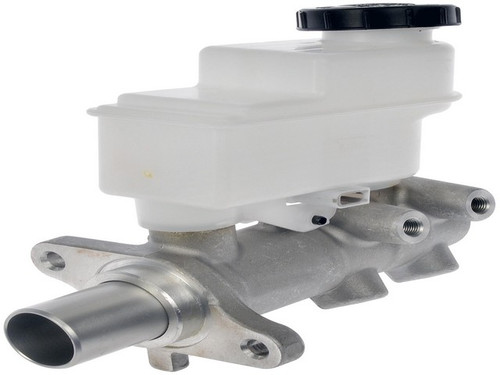

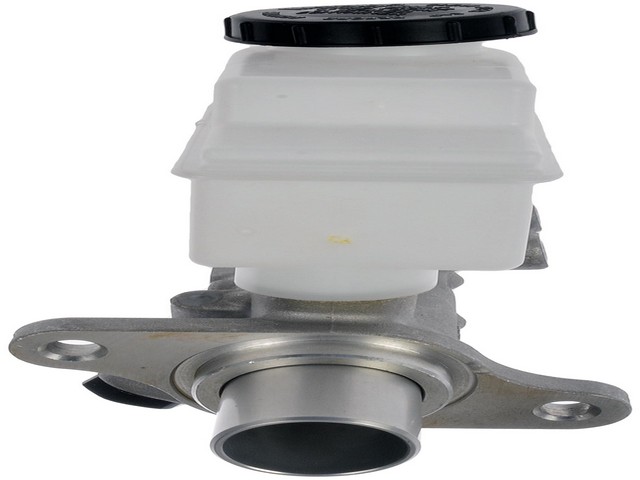

Dorman M630800 brake master cylinder for the 2008-2011 Nissan Titan turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is precision-engineered to match the design, function and performance of the original.
- Aluminum cylinder housing
- All rubber components are EPDM compound, which resists glycol-based brake fluid
- Made entirely of new materials
- Built to SAE International standards
Quick facts
- Part: Dorman M630800 brake master cylinder
- Fits: 2008-2011 Nissan Titan
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, a reservoir level that keeps dropping, or brake fluid around the cylinder body can mean the master cylinder is worn, though a leaking brake line or a worn caliper can also be behind them. If the master cylinder is the cause, this one replaces it.
Fits
It is a direct-fit 2008-2011 Nissan Titan master cylinder, and each vehicle takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Number of outlets: 2
- Bore diameters: 1.313 in and 1.063 in
- Outlet threads: M10 x 1.0 on the rearward and secondary outlets
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Reservoir: single, included
- Sensor: included
- Condition: New
- Country of origin: Taiwan
In the box
One master cylinder with its reservoir and sensor. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.
Interchange: 100-2939 · 13-3856 · 11-3856 · 130.42904 · 355-67116
NM55637 · 46010ZR00C
This part cross-references / interchanges with the following part numbers:
100-2939, 13-3856, 11-3856, 130.42904, 355-67116, NM55637, 46010ZR00C
Frequently Asked Questions
Is this Dorman master cylinder right for the 2008-2011 Nissan Titan?
Yes. Dorman M630800 is a direct-fit replacement for the 2008-2011 Nissan Titan, and each vehicle takes one.
Does the M630800 come with the reservoir and sensor?
Yes. Dorman M630800 comes with its single reservoir and sensor. Mounting hardware is not included.
Are the rubber parts in this master cylinder EPDM?
Yes. All the rubber components are EPDM compound, which resists glycol-based brake fluid.
How can I tell if the master cylinder is leaking?
Look for brake fluid around the cylinder body and a reservoir level that keeps dropping. A soft or sinking pedal can go with it, and a shop can test it.
What thread size do the outlets on this master cylinder use?
The cylinder has two outlets. The rearward and secondary outlets are M10 x 1.0, with a 1 mm pitch on the primary outlet.
