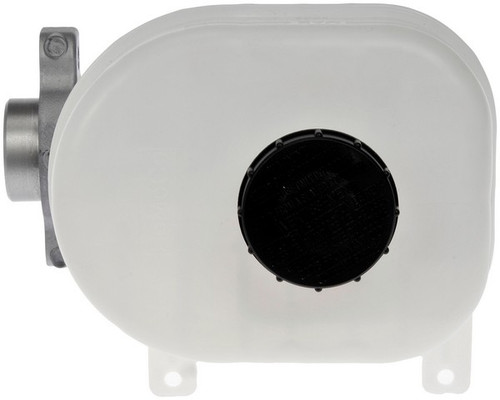

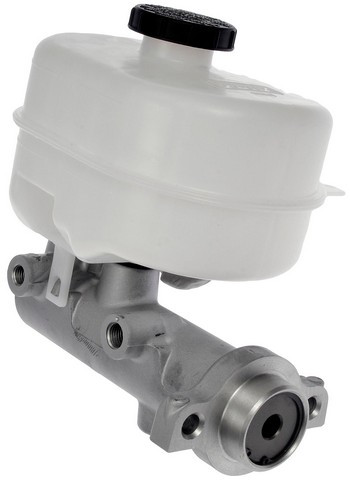

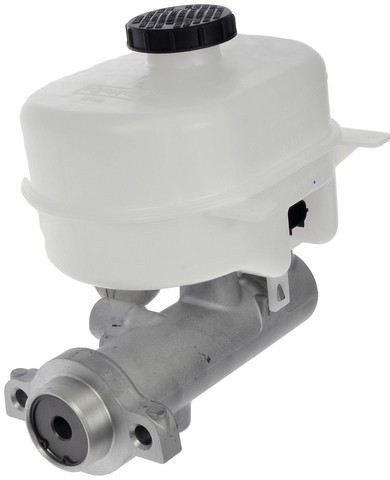

Dorman - First Stop Brake Master Cylinder P/N:M630794
Dorman M630946 brake master cylinder for the 2016 Ford F-350 and other vehicles turns pedal force into hydraulic pressure for the brakes.
A brake pedal that feels soft or sinks under steady pressure, or fluid showing around the cylinder body, can mean the master cylinder is worn. Other brake parts can leak or give a similar pedal, so with the engine off, look over the cylinder, the lines and the fluid level for wet spots first, and leave pressure tests to a shop. Have braking problems looked at promptly.
It also fits the 2014 Ford F-350, the 2014-2016 Ford F-250 Super Duty and the 2014-2016 Ford F-350 Super Duty.
Fit and size
Build and materials
One brake master cylinder with its reservoir and sensor; your vehicle takes just one. Mounting hardware is not included, so plan on new mounting hardware.
Interchange: 100-3991
DC3Z2140A · NM4301 · MC391497
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this a Ford F-350 Super Duty brake master cylinder for the 2014-2016 model years?
Yes. Dorman M630946 fits the 2014-2016 Ford F-350 Super Duty, and it also fits the 2014-2016 Ford F-250 Super Duty.
Does the Dorman master cylinder come with the reservoir and sensor?
Yes. Dorman M630946 includes the reservoir and the sensor with the cylinder. Mounting hardware is not included.
What is this Dorman brake master cylinder made of?
The housing is cast iron, with a 1.5 in bore diameter. The part is made entirely of new materials.
What thread sizes do the outlets on this brake master cylinder have?
Dorman M630946 has two outlets. The rearward outlet is M14 x 1.5 and the secondary outlet thread is M12 x 1.5.
Are the seals in this brake master cylinder made for glycol-based brake fluid?
Yes. All the rubber components in Dorman M630946 are EPDM compound, which resists glycol-based brake fluid.
