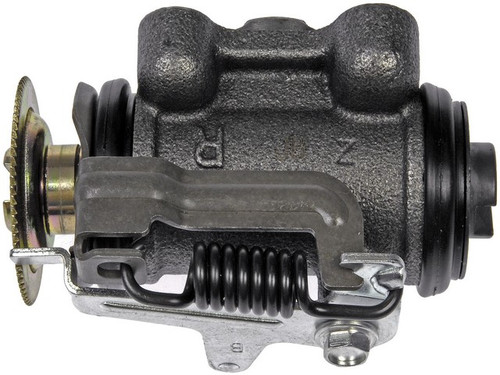

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W610178
$104.99
(You save)
Keep hydraulic pressure moving to your rear drum brakes with the Dorman First Stop Drum Brake Wheel Cylinder W610178. It drops in as a direct-fit replacement for the rear right (rearward) position on the 2004-2009 Chevrolet W3500 Tiltmaster, 2004-2008 GMC W3500 Forward, 2004-2009 and 2011-2015 Isuzu NPR, and 2011-2015 Isuzu Reach. A wheel cylinder converts brake-line hydraulic pressure into outward piston movement, pushing the brake shoes against the drum.
Direct-fit design: engineered to match the original wheel cylinder's fit, function and performance on the listed applications, then manufactured and tested for quality assurance.
EPDM rubber cups and boots: made with high-quality EPDM cups and boots for long-lasting performance.
Surface-tested bore: the cylinder bore is surface-tested to provide an optimum sealing surface for the pressure cups.
Cast iron construction: cast iron body with a 1.063 in. inside diameter and two M10 x 1.0 inlet threads.
Replacing the wheel cylinder while servicing the drum brakes is a quick, cost-effective way to keep the hydraulic side of the brake in shape. If a leaking or sticking wheel cylinder is the cause of a damp shoe, brake-fluid seepage at the drum, or a soft pedal, this unit replaces it. The bleeder screw and bleeder screw cap are not included. Country of origin: China.
Interchange: 134.76063 · 375-47106 · 37547106 · 97349702 · 8973497020 · WC370244 · Manufacturer part number W610178
This part cross-references / interchanges with the following part numbers:
It converts hydraulic brake-line pressure into outward piston movement, pushing the brake shoes against the drum. Its EPDM cups and boots help seal that pressure.
What vehicles does W610178 fit?
It's a direct-fit replacement for the 2004-2009 Chevrolet W3500 Tiltmaster, 2004-2008 GMC W3500 Forward, 2004-2009 and 2011-2015 Isuzu NPR, and 2011-2015 Isuzu Reach. See the Buyer's Guide tab for details.
Is a bleeder screw included?
No. The bleeder screw and bleeder screw cap are not included; consult the vehicle service information for the correct parts and whether existing ones may be reused.
Which position is this wheel cylinder for?
The catalog lists it for the rear right (rearward) position on the covered applications.
How do I know if my wheel cylinder may be failing?
Signs it may need replacing include brake fluid leaking at the wheel or drum, a damp brake shoe, or a soft, spongy pedal. Diagnose the cause before replacing.
