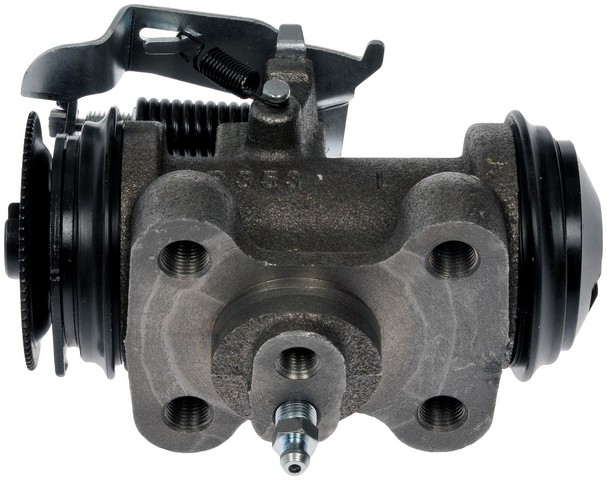

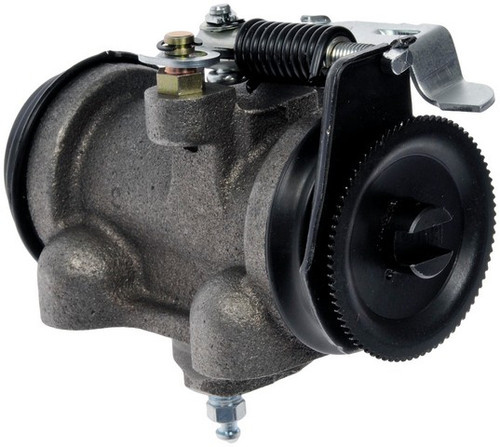

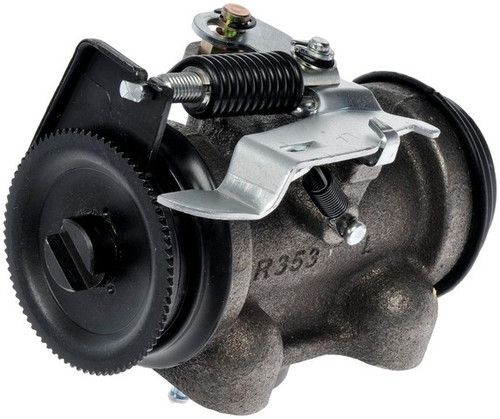

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W610207
$141.99
(You save)
Convert hydraulic line pressure into the shoe-clamping force your drum brakes rely on with the Dorman - First Stop Drum Brake Wheel Cylinder W610207. It installs as a direct-fit replacement for the 2005-2009 Chevrolet W5500HD Tiltmaster, 2005-2009 GMC W5500HD Forward, 2004 Hino FD2320, 2014-2015 Isuzu NQR, and 2005-2016 Isuzu NRR (All engines), and is cataloged for the rear-left-forward and front-right-forward positions.
Durable materials: cast-iron body with high-quality EPDM rubber cups and boots.
Surface-tested bore: the cylinder bore is surface-tested to provide an optimum sealing surface for the pressure cups.
Bleeder screw included: ships with a bleeder screw (bleeder screw cap not included) and a tension-spring attachment.
Direct-fit design: engineered as a direct replacement to fit and perform like the original wheel cylinder on the listed applications.
The wheel cylinder uses brake-fluid pressure to push its pistons outward and force the brake shoes against the drum. Signs this part may need replacing include brake fluid seeping at the backing plate, a low or spongy pedal, or uneven drum braking — diagnose the cause before replacing. It measures 1-5/16 in inside diameter and 2.29 in outside diameter, is 4.27 in long, and has an M10 x 1.0 inlet thread with four mounting holes. Mounting hardware is not included; consult the vehicle service information for the correct fasteners and whether they may be reused. Country of origin: Taiwan.
Interchange: 134.76043 · 375-47096 · 37547096 · 97372821 · S475101620 · 8973728210 · 8983172780 · Manufacturer part number W610207
This part cross-references / interchanges with the following part numbers:
It uses brake-fluid pressure to push its pistons outward, forcing the drum brake shoes against the drum to slow the vehicle.
Which vehicles does this wheel cylinder fit?
It's a direct-fit replacement for the 2005-2009 Chevrolet W5500HD Tiltmaster, 2005-2009 GMC W5500HD Forward, 2004 Hino FD2320, 2014-2015 Isuzu NQR, and 2005-2016 Isuzu NRR.
Does it include a bleeder screw and mounting hardware?
Yes, a bleeder screw is included (the bleeder screw cap is not). Mounting hardware is not included; consult the service information for the correct fasteners.
What are the key dimensions and thread size?
It has a 1-5/16 in inside diameter, a 2.29 in outside diameter, a 4.27 in length, four mounting holes, and an M10 x 1.0 inlet thread.
What are signs the wheel cylinder may need replacing?
Brake fluid leaking at the backing plate, a low or spongy pedal, or uneven drum braking may be signs. Diagnose the cause before replacing, as other parts can produce these symptoms.
