Rear Drum Brake Wheel Cylinder for 1955-1971 Volkswagen Transporter - Dorman W93083

$26.99

Vehicles this part fits

    Part number: W93083
    UPC: 082702414385
    Condition: New
    Weight: 0.80 LBS
    Item Package Quantity: 1
    $26.99
    Adding to cart… The item has been added

    Have questions?

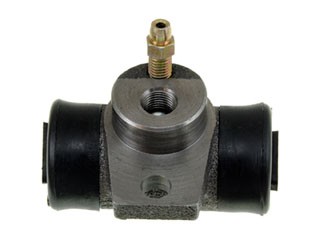

    Dorman - First Stop Drum Brake Wheel Cylinder P/N:W93083
    Dorman - First Stop Drum Brake Wheel Cylinder P/N:W93083
    $26.99
    $26.99

    Convert hydraulic pressure into shoe-to-drum force with the Dorman - First Stop Drum Brake Wheel Cylinder W93083. This rear-position drum brake wheel cylinder drops in as a direct-fit replacement for the 1955-1971 Volkswagen Transporter (All), where two are used per vehicle — order 2 to service both rear wheels. Dorman engineered it to line up with the original cylinder's fit, function, and performance on the listed applications, and it is manufactured and tested for quality assurance.

    • Quality materials: built with high-quality EPDM rubber cups and boots for long-lasting sealing.
    • Professionally tested: the bore is surface-tested to provide an optimum sealing surface for the pressure cups.
    • Spec'd to match: cast-iron body with a 0.875 in inside-diameter bore and an M10 x 1.0 inlet thread (10 mm, 1.0 pitch).
    • Ready to install: includes a bleeder screw; a bleeder screw cap is not included.

    Replacing the wheel cylinder while you service the rear drums is a fast, cost-effective way to help keep the hydraulic side of the brakes working properly. If a leaking or seized cylinder is the cause of a soft pedal, fluid behind the drum, or uneven braking, this replaces it. Country of origin: Taiwan.

    Interchange: 84-94200 · 8494200 · W906167 · W-20200 · W20200 · 072-8034 · 0728034 · 33684 · 134.33200 · WC252340 · 375-74005 · 37574005 · WC35144 · 211611047C · F93083 · WC93083 · Manufacturer part number W93083.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    84-94200, W906167, W-20200, 072-8034, 33684, 134.33200, WC252340, 375-74005, 211611047C, F93083, WC93083

    Frequently Asked Questions

    What does this wheel cylinder do?

    It uses hydraulic pressure from the brake system to push the drum brake shoes outward against the drum. This W93083 is the rear-position cylinder for the listed VW Transporter applications.

    Will it fit my vehicle?

    It's a direct-fit replacement for the 1955-1971 Volkswagen Transporter (All). Check the "Vehicles it fits" section to confirm it matches your vehicle before ordering.

    How many do I need?

    The listed applications use two per vehicle, so order 2 to replace both rear wheel cylinders. It's best practice to service both sides together for even braking.

    Is a bleeder screw included?

    Yes, a bleeder screw is included. A bleeder screw cap is not included. The body is cast iron with a 0.875 in bore and an M10 x 1.0 inlet thread.

    What are signs mine may need replacing?

    Brake fluid leaking behind the drum, a soft or spongy pedal, or uneven braking can indicate a failing wheel cylinder. Diagnose the cause before replacing, as other parts can produce similar symptoms.
