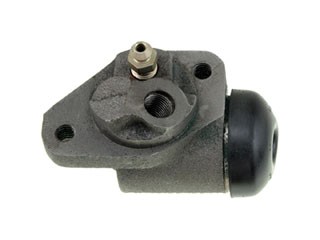

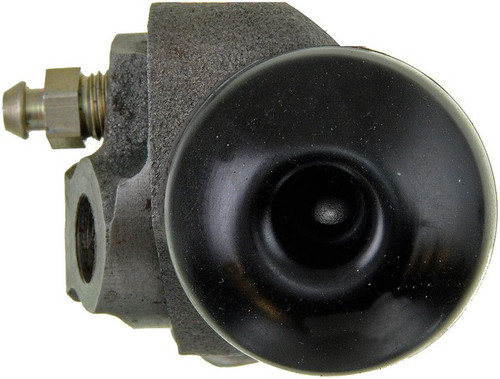

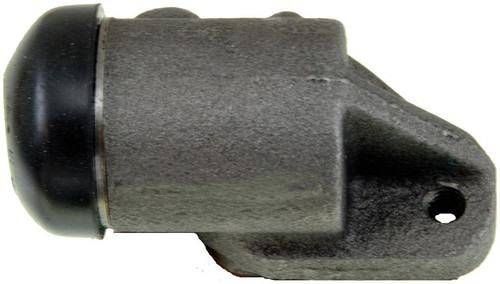

Dorman - First Stop Drum Brake Wheel Cylinder P/N:W9695
$59.99
(You save)
When your drum brakes need a fresh hydraulic actuator, the Dorman - First Stop Drum Brake Wheel Cylinder (P/N W9695) supplies the hydraulic pressure that pushes the brake shoes outward against the drum. It installs in the front-left position and is engineered to match the original wheel cylinder's fit and function as a direct-fit replacement on a range of classic International trucks: the 1950-1952 L130, 1953-1955 R130, 1956-1957 S130, 1959-1960 B130, 1968-1971 MA1200 and 1971 M1200 (All engines; one used per application).
Cast-iron body: bores are surface-tested to provide an optimum sealing surface for the pressure cups.
EPDM rubber cups and boots: made with quality EPDM sealing components.
Bleeder screw included: ships with a bleeder screw; a bleeder screw cap is not included.
Cost-effective service: replacing the cylinder while servicing the drum brakes is a quick, straightforward way to keep the hydraulic circuit working.
Specs: 1 in inside diameter and a 7/16-20 UNF inlet thread (7/16 in thread diameter). Package contents: 1 drum brake wheel cylinder. Country of origin: China.
It uses brake hydraulic pressure to push the drum brake shoes outward against the drum. It has a cast-iron body with surface-tested bores and EPDM rubber cups and boots.
Which vehicles does W9695 fit?
It's a front-left direct-fit for International trucks: 1950-1952 L130, 1953-1955 R130, 1956-1957 S130, 1959-1960 B130, 1968-1971 MA1200 and 1971 M1200. See the Buyer's Guide tab.
Is a bleeder screw included?
Yes, the wheel cylinder includes a bleeder screw. A bleeder screw cap is not included.
What are the inlet thread and bore sizes?
The inlet thread is 7/16-20 UNF (7/16 in thread diameter) and the bore inside diameter is 1 in.
What are signs this wheel cylinder may need replacing?
Signs may include brake fluid leaking behind the drum, a soft or sinking pedal, or uneven braking. Diagnose the cause first, since other parts can produce these symptoms.
