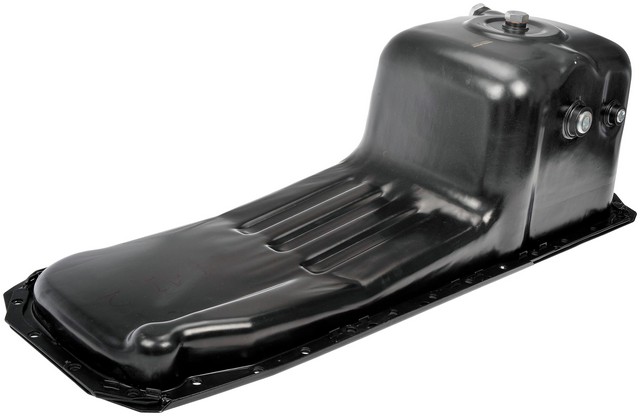

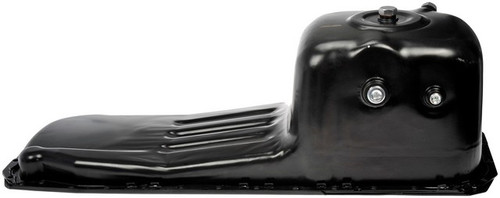

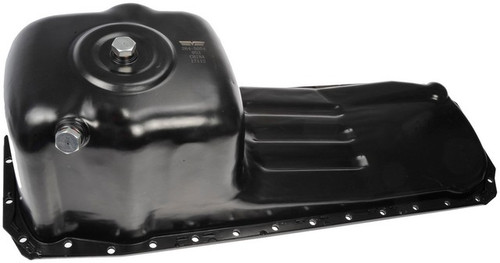

Dorman 264-5054 rear oil pan for the 1984-2010 Kenworth W900 and other vehicles holds the engine's oil at the bottom of the engine. This Dorman oil pan replaces a leaking or damaged one.
- Dorman HD Solutions product line
- Assembly with the replacement pan and drain plugs
- Steel pan with a high-strength coating that resists corrosion
- Wet sump design with an oil level sensor port
Quick facts
- Part: Dorman 264-5054 oil pan
- Also called: engine oil pan
- Fits: 1984-2010 Kenworth W900 and other vehicles
- Position: Rear sump
- Material: Steel
- Condition: New
Oil spots where the vehicle parks, seepage around the pan, or a cracked or rusted engine oil pan can all mean the pan needs replacing. Before you replace it, rule out a loose drain plug, a worn pan gasket or a leak from higher on the engine as the source of the oil.
Fits
The 1984-2010 Kenworth W900 and the 1987-2010 Kenworth T800 are among the many vehicles this pan fits. It is made as a direct replacement for the original pan on these vehicles. This listing is one pan, and the 1987-2010 Kenworth T800 takes one. Open the "Vehicles it fits" section and check your exact model and engine against it.
Specifications
Fit and size
- Position: rear sump
- Quantity per vehicle: 1
- Length: 40.2 in
- Maximum width: 14.6 in
- Maximum depth: 11.8 in
- Capacity: 38 U.S. quarts
- Drain thread size: 1x18
Build and materials
- Material: steel
- Coating: high-strength
- Sump type: wet
- Baffled: no
- Oil level sensor port: yes
- Dipstick port: no
- Condition: new
- Country of origin: China
In the box
One oil pan with its drain plugs. The gasket or seal, installation hardware, pickup, windage tray and crankshaft wiper are not included; plan on new bolts, since the old ones may not be reusable.
Interchange: 802.90287
3882722 · 3882723 · 3892965 · 3895628 · 3895630 · 3896250 · 3896251 · 3896328 · 4004587 · 4004590 · 4004859 · 4905350 · 4905351 · 4905352 · 4905382 · 4906840 · 4952770 · 4952780 · 4952790 · CMP03A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
802.90287, 3882722, 3882723, 3892965, 3895628, 3895630, 3896250, 3896251, 3896328, 4004587, 4004590, 4004859, 4905350, 4905351, 4905352, 4905382, 4906840, 4952770, 4952780, 4952790, CMP03A
Frequently Asked Questions
Does the Dorman 264-5054 oil pan fit a 1987-2010 Kenworth T800?
Yes, the 1987-2010 Kenworth T800 is on the fitment for Dorman 264-5054. Check your engine code in the "Vehicles it fits" section before ordering.
Does this oil pan come with a gasket and drain plug?
The pan comes with its drain plugs. The gasket or seal, installation hardware, pickup and windage tray are not included and are bought separately.
How many quarts does this steel oil pan hold?
Dorman 264-5054 holds 38 U.S. quarts. It measures 40.2 in long, 14.6 in wide and 11.8 in deep.
Does this oil pan have a dipstick port?
No, this rear sump pan has no dipstick port. It does have an oil level sensor port and a 1x18 drain thread.
Does the Dorman 264-5054 oil pan replace part number 4905350?
Yes. 4905350 is one of the numbers Dorman 264-5054 replaces, along with 3882722 and CMP03A.
