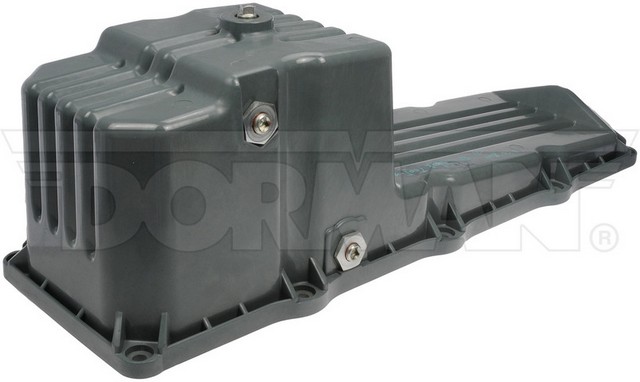

The Dorman 264-5002 front-sump oil pan for the 2002-2008 Western Star 4900SA L6-12.7L and other vehicles holds the oil supply at the bottom of the Detroit Diesel Series 60 engine. It is a direct replacement for a pan that is leaking or damaged.
- Precision-engineered to match the original equipment pan on the vehicles it is listed for
- Includes the pan and drain plugs to match the original components
- High-strength coating helps prevent corrosion
- Holds 40 U.S. quarts in a wet sump and has an oil level sensor port
- Part of the Dorman HD Solutions line, backed by engineers and quality control experts in the United States
Oil seeping from the pan, a crack or impact damage on it, or an oil level that keeps dropping between changes can mean the pan needs replacing. These signs alone don't prove the pan is the problem, since a worn pan gasket can leak at the same spot.
This pan is listed for a wide range of Freightliner, Western Star and other heavy-duty models, including the 2000-2015 Freightliner Columbia L6-12.7L and the 2002-2014 Western Star 4900FA L6-14.0L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: front sump
- Length: 45 in
- Maximum width: 15 in
- Maximum depth: 15 in
- Capacity: 40 U.S. quarts
- Drain thread size: 3/4 x 14
- Quantity per vehicle: 1
Build and materials
- Sump type: wet
- Material: fiberglass
- Oil level sensor port: yes
- Dipstick port: no
- Baffled: no
- Country of origin: China
In the box
This listing is one oil pan with drain plugs, and each vehicle takes one pan. The gasket, installation hardware, oil pickup, windage tray and crankshaft wiper are not included, so plan on a new gasket and new bolts.
Interchange: 802.23281
23504160 · 23521170 · 23522282 · PAI641280
This part cross-references / interchanges with the following part numbers:
802.23281, 23504160, 23521170, 23522282, PAI641280
Frequently Asked Questions
Will the Dorman 264-5002 fit a 2000-2015 Freightliner Columbia L6-12.7L?
Yes. The Dorman 264-5002 front-sump oil pan fits the 2000-2015 Freightliner Columbia L6-12.7L and the 2002-2014 Western Star 4900FA L6-14.0L; open the "Vehicles it fits" section to match your own model and engine.
Does this Dorman engine oil pan come with a gasket?
No. This listing is the oil pan with its drain plugs; the gasket and installation hardware are sold separately.
How much oil does this front-sump pan hold?
This oil pan holds 40 U.S. quarts in a wet sump. It has a 3/4 x 14 drain thread and an oil level sensor port, but no dipstick port.
How can I tell if a Series 60 oil pan is cracked or leaking?
Fresh oil spots where the vehicle is parked, an oil level that drops between changes, or a crack found during service can mean this oil pan needs replacing.
Is this Dorman oil pan made of fiberglass?
Yes. The Dorman 264-5002 is a fiberglass oil pan with a high-strength coating that helps prevent corrosion, and it is part of the Dorman HD Solutions line.
