Front Control Arm for 1989-1996 Ford F-150 - Dorman 522-389

$107.99

Vehicles this part fits

    Part number: 522-389
    UPC: 019495822493
    Condition: New
    Weight: 8.59 LBS
    Item Package Quantity: 1
    $107.99
    Adding to cart… The item has been added

    Have questions?

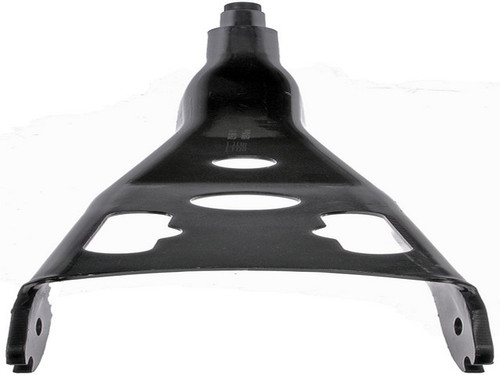

    Dorman - OE Solutions Radius Arm P/N:522-389
    Dorman - OE Solutions Radius Arm P/N:522-389
    $107.99
    $107.99

    Dorman 522-389 front control arm for the 1989-1996 Ford F-150 connects the front suspension to the vehicle and guides wheel movement. This Dorman suspension control arm uses a boxed design with a coated finish.

    • Dorman OE Solutions line, standard replacement grade
    • Steel construction, 685 mm long, with a 5 mm wall thickness
    • Precision-engineered to follow the design and dimensions of original components
    • Built to strict manufacturing standards with thorough quality-control testing for longevity

    Quick facts

    • Part: Dorman 522-389 control arm
    • Also called: suspension control arm
    • Fits: 1989-1996 Ford F-150
    • Position: Front right, front left
    • Material: Steel
    • Condition: New

    A clunk over bumps, wandering steering or uneven front tire wear can mean a worn control arm, but other suspension parts can produce the same signs. Before you replace the arm, rule out worn ball joints, tie rods and loose mounting bolts.

    Fits

    It is a direct replacement for the 1989-1996 Ford F-150, intended to fit and perform like the original equipment. This listing is one arm, and the other side of the front axle is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: front right, front left
    • Quantity per vehicle: 1
    • Length: 685 mm
    • Width: 127 mm minimum, 146 mm maximum
    • Wall thickness: 5 mm
    • Mounting hole diameters: 20.5 mm and 18.5 mm
    • Bushing inside diameter: 18.5 mm
    • Bushing length: 83 mm

    Build and materials

    • Control arm type: boxed
    • Material: steel
    • Finish: coated
    • Attachment type: bushing
    • Bushing material: rubber and steel
    • Adjustable: no
    • Condition: new
    • Country of origin: Thailand

    In the box

    One control arm. This listing holds one arm, and the fitment calls for a quantity of one. Bushings, a ball joint, a grease fitting and mounting hardware are not included, so plan on new bolts, since the old ones may not be reusable.

    Interchange: CA6474 · F1TZ3A360B

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CA6474, F1TZ3A360B

    Frequently Asked Questions

    Is the Dorman 522-389 the right F-150 control arm for a 1989-1996 Ford F-150?

    Yes. Dorman 522-389 is a front control arm for the 1989-1996 Ford F-150.

    Does the Dorman 522-389 come with bushings or a ball joint?

    No. Dorman 522-389 is one control arm; bushings, a ball joint, a grease fitting and mounting hardware are not included.

    What are the measurements of this Dorman control arm?

    It is 685 mm long, 127 to 146 mm wide, with a 5 mm wall thickness. The mounting holes measure 20.5 mm and 18.5 mm.

    What does a worn Dorman OE Solutions control arm look like?

    With the vehicle parked and cool, look for cracks, bends, rust or torn rubber near the bushing end. A shop can check for play in the suspension.

    Does Dorman 522-389 replace number F1TZ3A360B?

    Yes. F1TZ3A360B is one of the numbers Dorman 522-389 replaces; CA6474 is the other.
