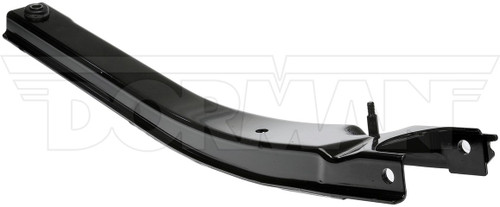

Dorman 522-915 front left radius arm for the 1999-2019 Ford F-250 Super Duty and other vehicles helps hold the axle in position. It is precision-engineered to match the design and dimensions of the original components.
- Steel construction with a coated finish
- Boxed control arm design with a bracket at the second end
- Rubber bushing included, 49 mm outside diameter and 18.6 mm inside diameter
- Fixed, non-adjustable design in standard replacement grade
Quick facts
- Part: Dorman 522-915 radius arm
- Fits: 1999-2019 Ford F-250 Super Duty and other vehicles
- Position: Front left
- Material: Steel
- Condition: New
A bent or cracked arm or a worn bushing can show up as a clunk over bumps, a loose steering feel or uneven tire wear. Worn ball joints, track bar parts or shocks can be behind these signs too, so find the cause before buying.
Fits
It is a direct replacement for the 1999-2019 Ford F-250 Super Duty and the 1999-2019 Ford F-350 Super Duty.
Specifications
Fit and size
- Position: front left
- Length: 1040 mm
- Width: 118 mm minimum, 188 mm maximum
- Wall thickness: 5 mm
- Mounting hole diameter: 195 mm
- Bushing: 49 mm outside diameter, 18.6 mm inside diameter, 83 mm long
- Bolt: 12 mm diameter, 50 mm long
Build and materials
- Material: steel
- Finish: coated
- Bushing material: rubber
- Control arm type: boxed
- End 2 type: bracket
- Condition: new
- Country of origin: Taiwan
In the box
One radius arm with its bushing. This listing is one arm for the front left, and that side takes one; the front right is a separate part ordered separately, and the two are normally replaced together. Mounting hardware, a ball joint and a grease fitting are not included, so plan on new bolts because the old ones may not be reusable.
Interchange: CA8958 · 2C3Z3A360AA · 5C3Z3A360AA · 7C3Z3A360A · 7C3Z3A360AC · 7C3Z3A360C · F81Z3A360BB
This part cross-references / interchanges with the following part numbers:
CA8958, 2C3Z3A360AA, 5C3Z3A360AA, 7C3Z3A360A, 7C3Z3A360AC, 7C3Z3A360C, F81Z3A360BB
Frequently Asked Questions
Is this Dorman 522-915 right for the 1999-2019 Ford F-250 Super Duty?
Yes. Dorman 522-915 is a front left radius arm for the 1999-2019 Ford F-250 Super Duty and also for the 1999-2019 Ford F-350 Super Duty.
Does this Dorman radius arm come with bushings?
Yes. The package holds one radius arm with its rubber bushing included. Mounting hardware, a ball joint and a grease fitting are not included.
What size is the bushing on this front left radius arm?
The rubber bushing is 49 mm outside diameter, 18.6 mm inside diameter and 83 mm long. The arm itself is 1040 mm long, with a 195 mm mounting hole diameter.
What can a worn bushing on a radius arm feel like?
A worn bushing or a bent arm can show up as a clunk over bumps, a loose steering feel or uneven tire wear. A shop can inspect the arm under load.
Does 7C3Z3A360A cross-reference to the Dorman 522-915 front left radius arm?
Yes. 7C3Z3A360A is on the interchange list for Dorman 522-915, along with CA8958 and 2C3Z3A360AA.
